TR9CG8000 Series

Catalog

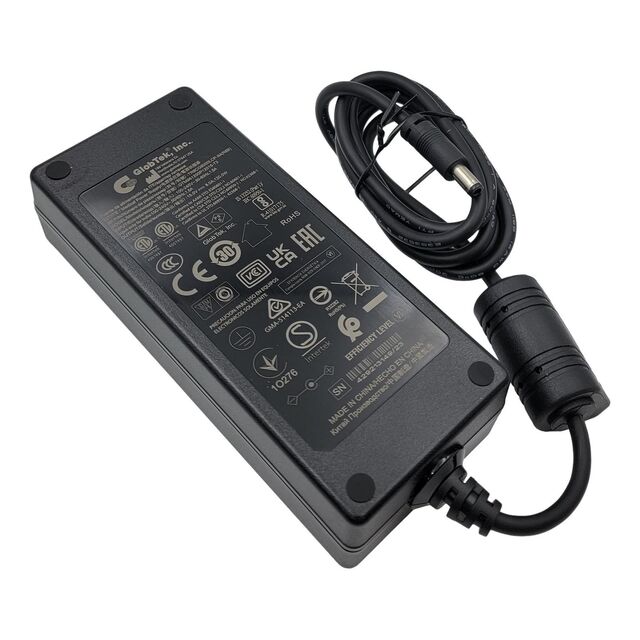

AC/DC DESKTOP ADAPTER 15V 120W

Part	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Cord Length	Cord Length	Approval Agency	Applications	Region Utilized	Polarization	Power (Watts)	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [custom]	Input Type	Form	Current - Output (Max) [Max]	No Load Power Consumption	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Voltage - Output	Standard Number	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. TR9CG8000CCP-IM(R6B)	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	1.2 m	47.2 in	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI	Household Appliances ITE (Commercial) Medical	International	Positive Center	120 W	IEC 320-C14	264 VAC	90 VAC	5.5 mm	11 mm	Barrel Plug R/A	2.5 mm	Cord (Sold Separately)	Desktop (Class I)	8 A	150 mW	40 °C	-10 °C	CoC Tier 2 Level VI	15 V
GlobTek, Inc. TR9CG8000LCP-IM(R6B)	34 mm	1.34 "	5.88 "	149.3 mm	2.47 "	62.8 mm	1.2 m	47.2 in	BSMI CB CCC CE cETLus EAC ETL PSE S-Mark UkrSEPRO VCCI	Household Appliances ITE (Commercial) Medical	International	Positive Center	120 W	IEC 320-C14	264 VAC	90 VAC			Barrel Plug		Cord (Sold Separately)	Desktop (Class I)	8 A	150 mW	40 °C	-10 °C	CoC Tier 2 Level VI	15 V	60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1	2.5 mm 5.5 mm	11 mm
