211-1 Series

Manufacturer: CNC Tech

Catalog

CONN IC DIP SOCKET 6POS GOLD

Part	Contact Resistance	Termination Post Length	Termination Post Length	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Termination	Mounting Type	Pitch - Mating	Pitch - Mating	Type	Type	Type	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [y]	Number of Positions or Pins (Grid) [x]	Number of Positions or Pins (Grid)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Contact Material - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Housing Material	Contact Finish - Post	Type [custom]	Type [custom]

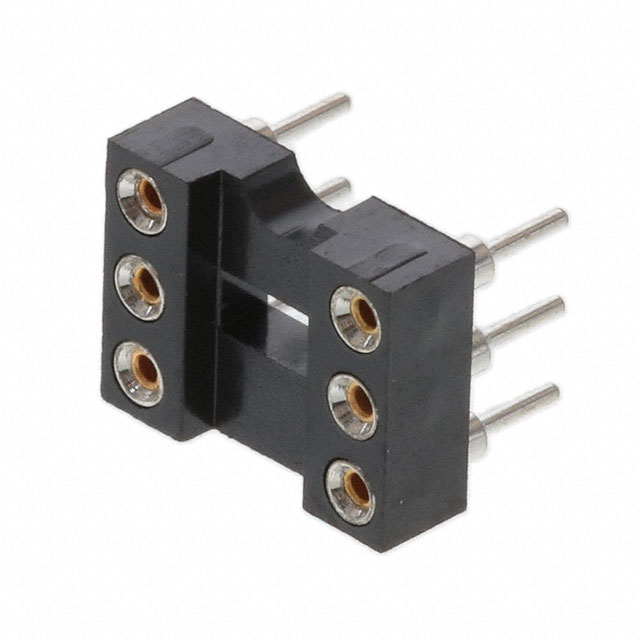

CNC Tech 211-1-06-003	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	0.1 in	2.54 mm	3 positions or pins	2	6	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin

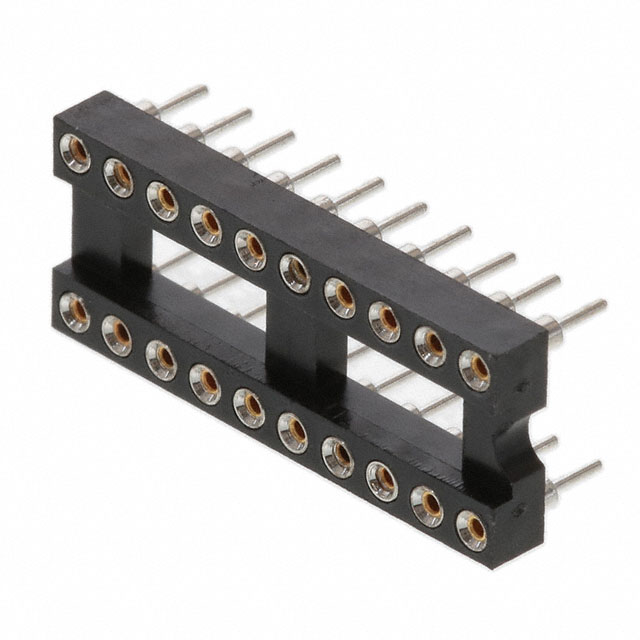

CNC Tech 211-1-20-003	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	0.1 in	2.54 mm			20	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin

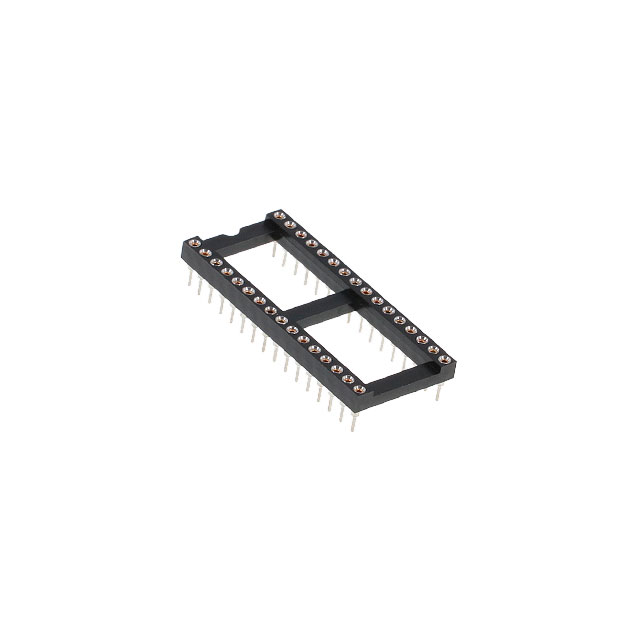

CNC Tech 211-1-32-006	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm			DIP	0.1 in	2.54 mm			32	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin	15.24 mm	0.6 in
CNC Tech 211-1-18-003	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	0.1 in	2.54 mm			18	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin

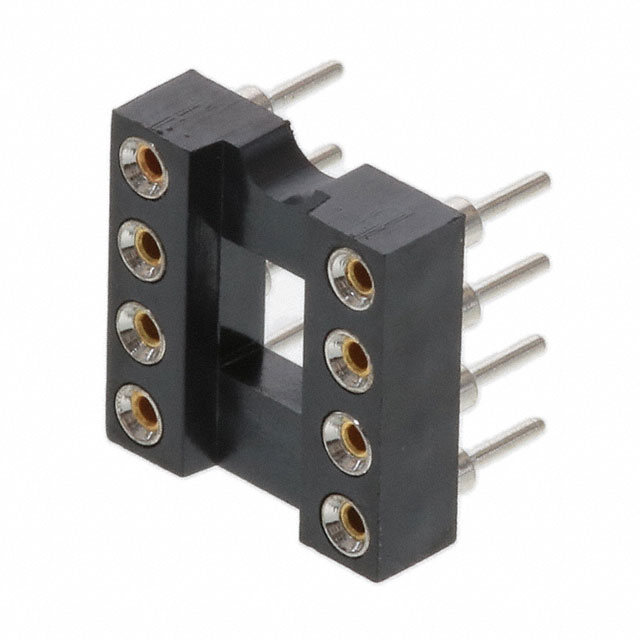

CNC Tech 211-1-08-003	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	0.1 in	2.54 mm	4	2	8	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin

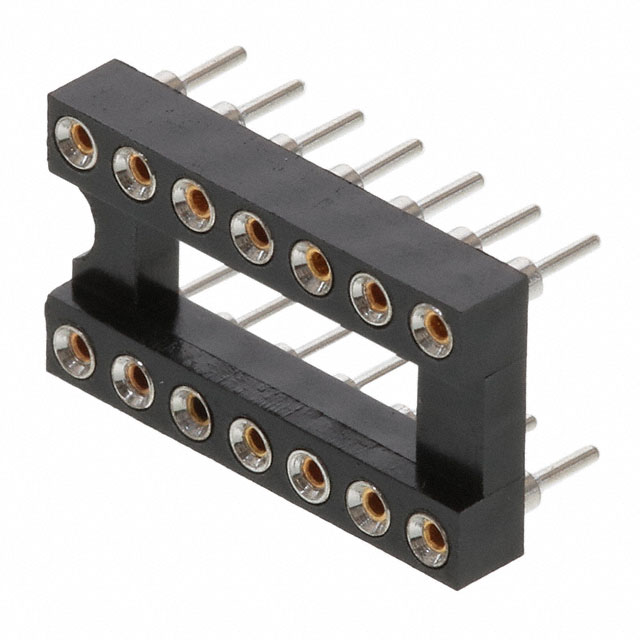

CNC Tech 211-1-14-003	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm	7.62 mm	0.3 in	DIP	0.1 in	2.54 mm			14	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin

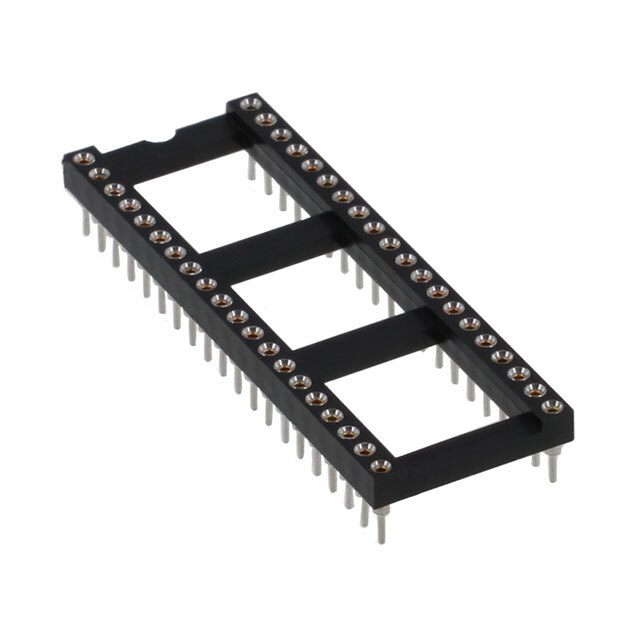

CNC Tech 211-1-40-006	4 mOhm	0.11 in	2.78 mm	3 A	UL94 V-0	Gold	Solder	Through Hole	0.1 "	2.54 mm			DIP	0.1 in	2.54 mm			40	200 µin	5.08 µm	-55 C	105 ░C	Open Frame	Brass	0.25 µm	10 µin	Beryllium Copper	Polybutylene Terephthalate (PBT)	Tin	15.24 mm	0.6 in
