40 Series

Manufacturer: Ohmite

Catalog

WIREWOUND RESISTORS - THROUGH HOLE 3WATT 40OHM 5% AXIAL

Part	Power (Watts)	Resistance	Package / Case	Temperature Coefficient	Tolerance	Number of Terminations [custom]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Supplier Device Package	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]
Ohmite 43J40RE	3 W	40 Ohms	Axial	20 ppm/°C	5 %	2	15.1 mm	0.22 in	5.6 mm	0.594 "	Axial	Wirewound

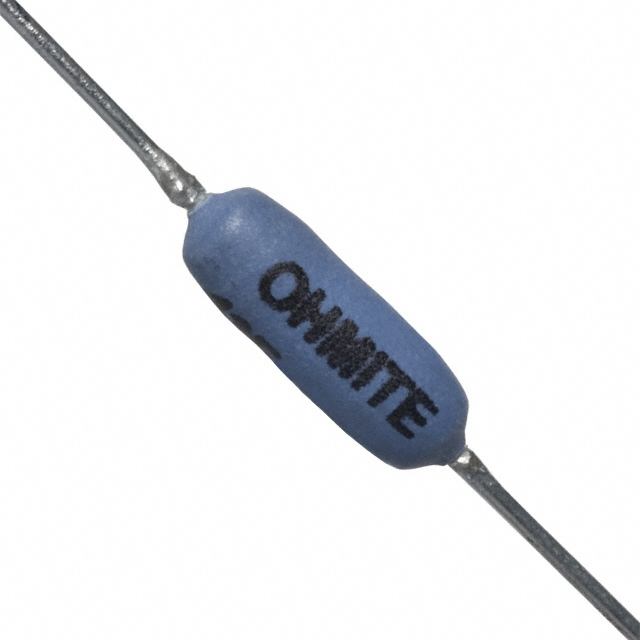

Ohmite 43F27RE	3 W	27 Ohms	Axial	20 ppm/°C	1 %	2	15.1 mm	0.22 in	5.6 mm	0.594 "	Axial	Wirewound	-55 C	275 °C
Ohmite 45J2K0E	5 W	2 kOhms	Axial	20 ppm/°C	5 %	2		0.343 in	8.7 mm	0.937 "	Axial	Wirewound	-55 C	275 °C	23.8 mm
Ohmite 43J10RE	3 W	10 Ohms	Axial	20 ppm/°C	5 %	2	15.1 mm	0.22 in	5.6 mm	0.594 "	Axial	Wirewound	-55 C	275 °C
Ohmite 45J330E	5 W	330 Ohms	Axial	20 ppm/°C	5 %	2		0.343 in	8.7 mm	0.937 "	Axial	Wirewound	-55 C	275 °C	23.8 mm
Ohmite 42J18RE	2 W	18 Ohms	Axial	20 ppm/°C	5 %	2	10.3 mm	0.22 in	5.6 mm	0.406 in	Axial	Wirewound

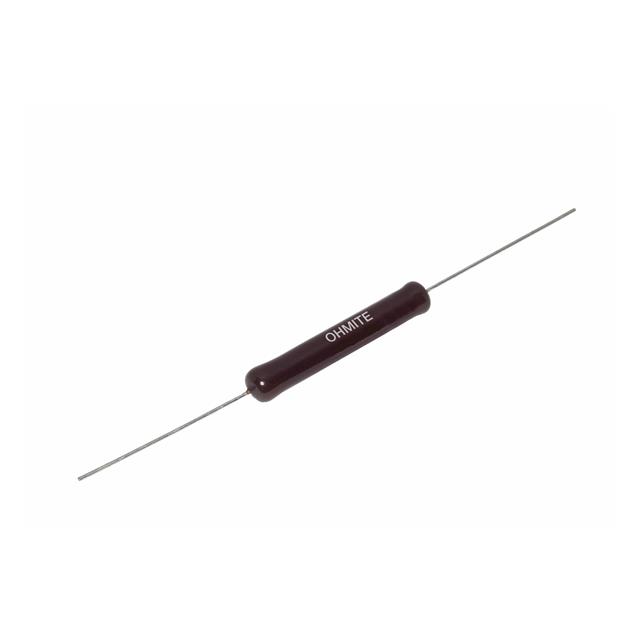

Ohmite 40F3K5E	10 W	3.5 kOhms	Axial	20 ppm/°C	1 %	2	48.3 mm	0.406 "	10.3 mm	1.902 in	Axial	Wirewound	-55 C	275 °C
Ohmite 42J1K5E	2 W	1500 Ohms	Axial	20 ppm/°C	5 %	2	10.3 mm	0.22 in	5.6 mm	0.406 in	Axial	Wirewound
Ohmite 41JR75E	1 W	0.75 Ohms	Axial	90 ppm/°C	5 %	2	11.1 mm	0.126 in	3.2 mm	0.437 in	Axial	Wirewound
Ohmite 41J22RE	1 W	22 Ohms	Axial	20 ppm/°C	5 %	2	11.1 mm	0.126 in	3.2 mm	0.437 in	Axial	Wirewound	-55 C	275 °C
