IL-G Series

Catalog

HEADERS & WIRE HOUSINGS PLUG CBL 2.5MM 12P

Part	Note	Contact Termination	Contact Type	Color	Pitch	Pitch	Insulation Material	Number of Rows	Number of Positions	Mounting Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Style	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Insulation Color	Current Rating (Amps)	Termination	Contact Shape	Contact Finish - Post	Shrouding	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Contact Material	Contact Length - Mating	Contact Length - Mating

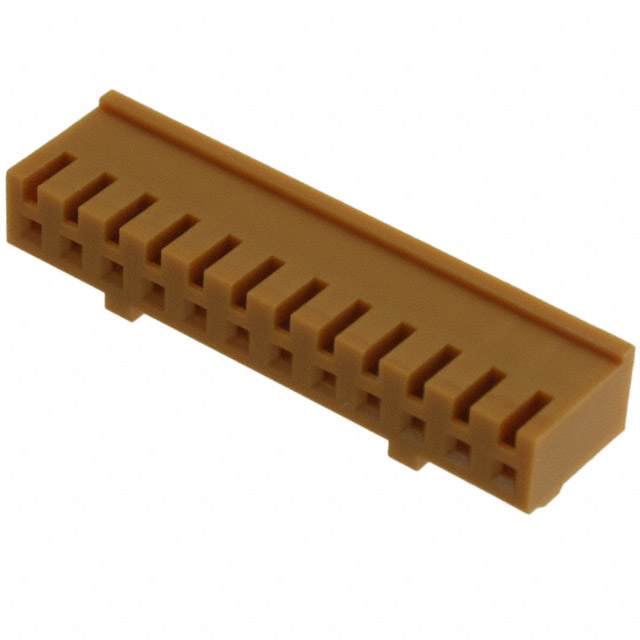

JAE Electronics IL-G-12S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)	1	12	Free Hanging (In-Line)	Friction Lock	Receptacle	85 °C	-40 C
JAE Electronics IL-G-9P-S3T2-SA			Male Pin				Nylon 6/6 Polyamide (PA66)	1	9	Through Hole	Friction Lock	Header	85 °C	-40 C	10 mm	2.5 mm	0.098 in	Board to Cable/Wire	9.6 mm	0.378 in	0.138 in	3.5 mm	Brown	3 A	Solder	Square	Tin	Shrouded - 1 Wall	0.28 in	7.1 mm	UL94 V-0	All	Brass	4 mm	0.157 in

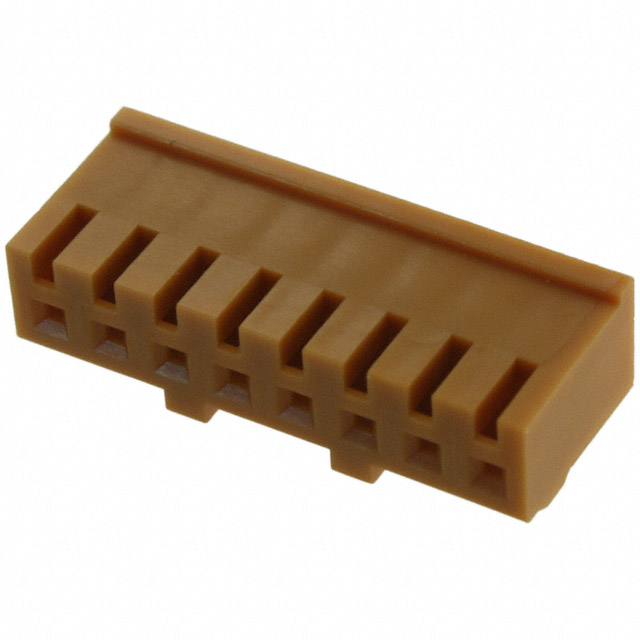

JAE Electronics IL-G-8S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)	1	8	Free Hanging (In-Line)	Friction Lock	Receptacle	85 °C	-40 C

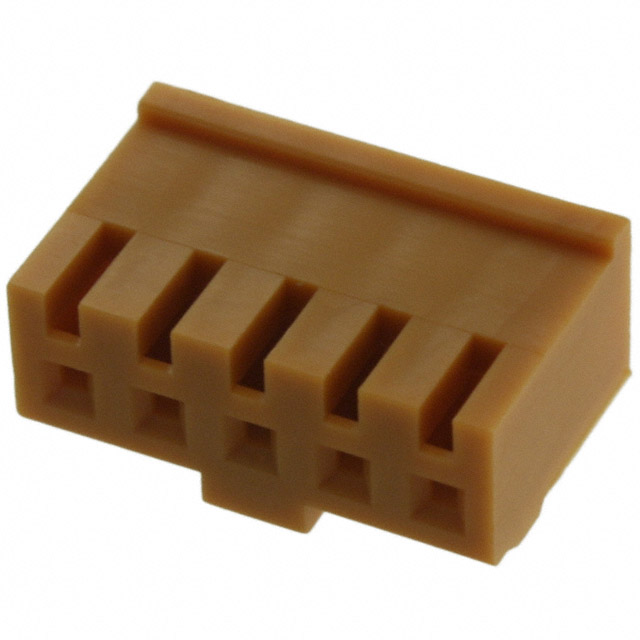

JAE Electronics IL-G-5S-S3C2-SA	Contacts Not Included	Crimp	Female Socket	Brown	2.5 mm	0.098 in	Nylon 6/6 Polyamide (PA66)	1	5	Free Hanging (In-Line)	Friction Lock	Receptacle	85 °C	-40 C
