M7139 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR 300PSI 1/4NPT W/CONN

Part	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Port Style	Operating Pressure	Operating Pressure	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Accuracy	Package / Case	Port Size	Port Size	Port Size	Output Type	Output [Max]	Output [Min]	Termination Style	Maximum Pressure	Maximum Pressure
TE Connectivity AMP Connectors M7139-300PG-500000	4136.85 kPa	600 PSI	Temperature Compensated	Threaded	300 PSI	2068.43 kPa	4.75 V	5.25 V	Vented Gauge	Industrial Automation	125 °C	-40 C	0.25 %	Cylinder	Male NPT	0.25 "	0.25 in	Analog Voltage	4.5 V	0.5 V	Connector
TE Connectivity AMP Connectors M7139-05KPN-500000	68947.57 kPa	10000 PSI	Temperature Compensated	Threaded	5000 PSI	34473.79 kPa	4.75 V	5.25 V	Sealed Gauge	Industrial Automation	125 °C	-40 C	0.25 %	Cylinder	Male NPT	0.25 "	0.25 in	Analog Voltage	4.5 V	0.5 V	Connector

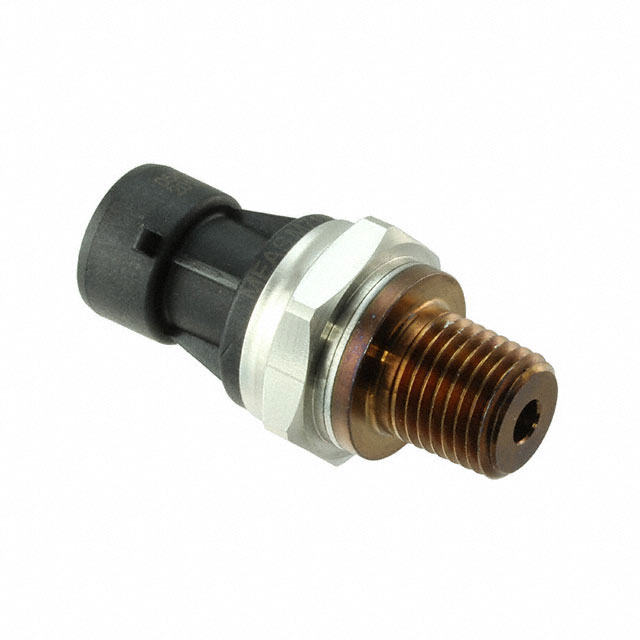

TE Connectivity AMP Connectors M7139-05KPG-500000	68947.57 kPa	10000 PSI	Temperature Compensated	Threaded	5000 PSI	34473.79 kPa	4.75 V	5.25 V	Vented Gauge	Industrial Automation	125 °C	-40 C	0.25 %	Cylinder	Male NPT	0.25 "	0.25 in	Analog Voltage	4.5 V	0.5 V	Connector
TE Connectivity AMP Connectors M7139-500PG-500000			Temperature Compensated	Threaded	500 PSI	3447.38 kPa	4.75 V	5.25 V	Vented Gauge		125 °C	-40 C	0.25 %	Cylinder	Male NPT	0.25 "	0.25 in	Analog Voltage	4.5 V	0.5 V	Connector	6894.76 kPa	1000 PSI
TE Connectivity AMP Connectors M7139-020BG-200000			Temperature Compensated	Threaded	290.08 PSI	2000 kPa	4.75 V	5.25 V	Vented Gauge	Industrial Automation	125 °C	-40 C	0.25 %	Cylinder	BSPP Male	0.25 "	0.25 in	Analog Voltage	4.5 V	0.5 V	Connector	4000 kPa	580.15 PSI
TE Connectivity AMP Connectors M7139-200PN-P00000	2757.9 kPa	400 PSI	Temperature Compensated	Threaded	200 PSI	1378.95 kPa	4.75 V	5.25 V	Sealed Gauge	Industrial Automation	125 °C	-40 C	0.25 %	Cylinder	7/16 Female UNF		11.11 mm	Analog Voltage	4.5 V	0.5 V	Connector
