AHER41 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

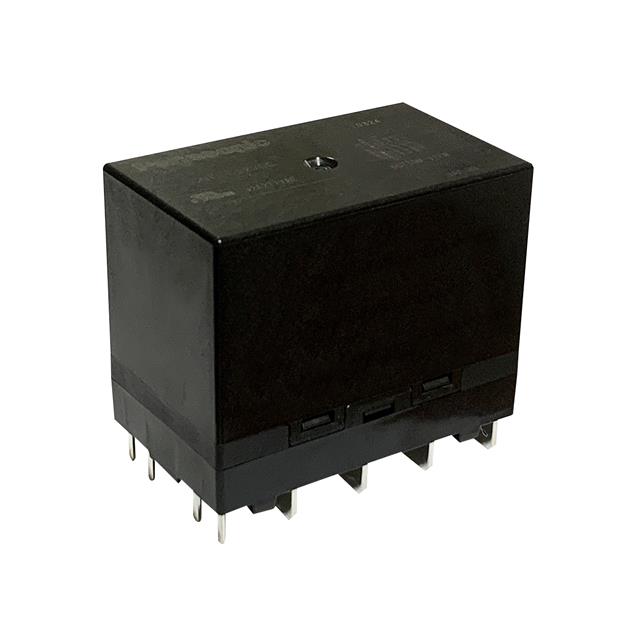

PWR RELAY, 4PST-NO/SPST-NC, 1A, 277V, TH ROHS COMPLIANT: YES
| Part | Coil Resistance | Operate Time | Coil Type | Release Time | Coil Voltage | Relay Type | Load - Max Switching [Max] | Mounting Type | Must Operate Voltage | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Contact Form | Approval Agency | Contact Rating (Current) | Contact Material | Coil Current | Must Release Voltage | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 36 Ohms | 50 ms | Non Latching | 30 ms | 12 VDC | General Purpose | 19200 VA | Through Hole | 9 VDC | PC Pin | 85 °C | -40 C | 5PST-4NO/1NC (4 Form A 1 Form B) | cURus VDE | 40 A | Silver Tin Oxide (AgSnO) | 333 mA | 0.6 VDC | 480 VAC |
