SF6282 Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

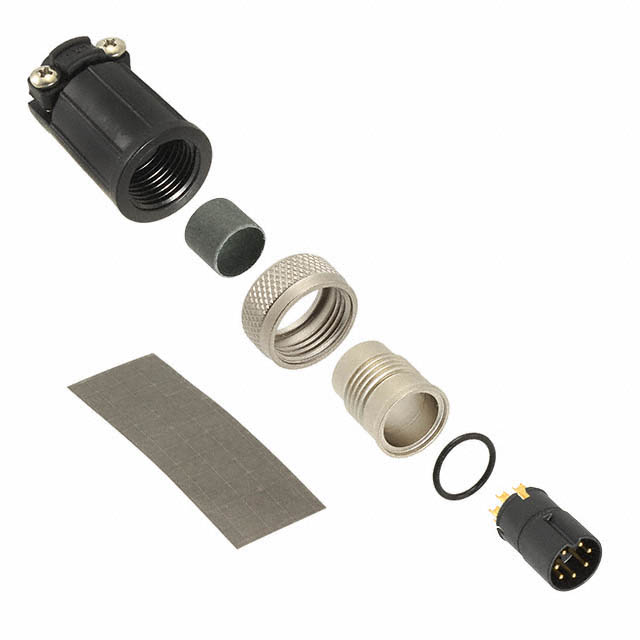

CONN PLUG MALE 3P GOLD SLDR CUP
| Part | Mounting Type | Connector Type | Primary Material | Shell Finish | Contact Material | Shielding | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Backshell Material, Plating | Ingress Protection | Shell Material | Insert Material | Contact Finish - Mating | Fastening Type | Features | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Male Pins | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Female Sockets | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | 4 |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Male Pins | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | 7 |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Male Pins | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | 4 |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Female Sockets | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Male Pins | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | 6 |
 SWITCHCRAFT/CONXALL | Free Hanging (In-Line) | Plug Female Sockets | Metal | Nickel | Copper Alloy | Shielded | Keyed | 120 °C | -40 C | Glass Filled Nylon Polyamide (PA) | IP66 IP68 | Copper Alloy | Polyester Resin | Gold | Threaded | Backshell Cable Clamp Coupling Nut | Black Silver | 6 |
