ANT-2.4-FPC-SH Series

Catalog

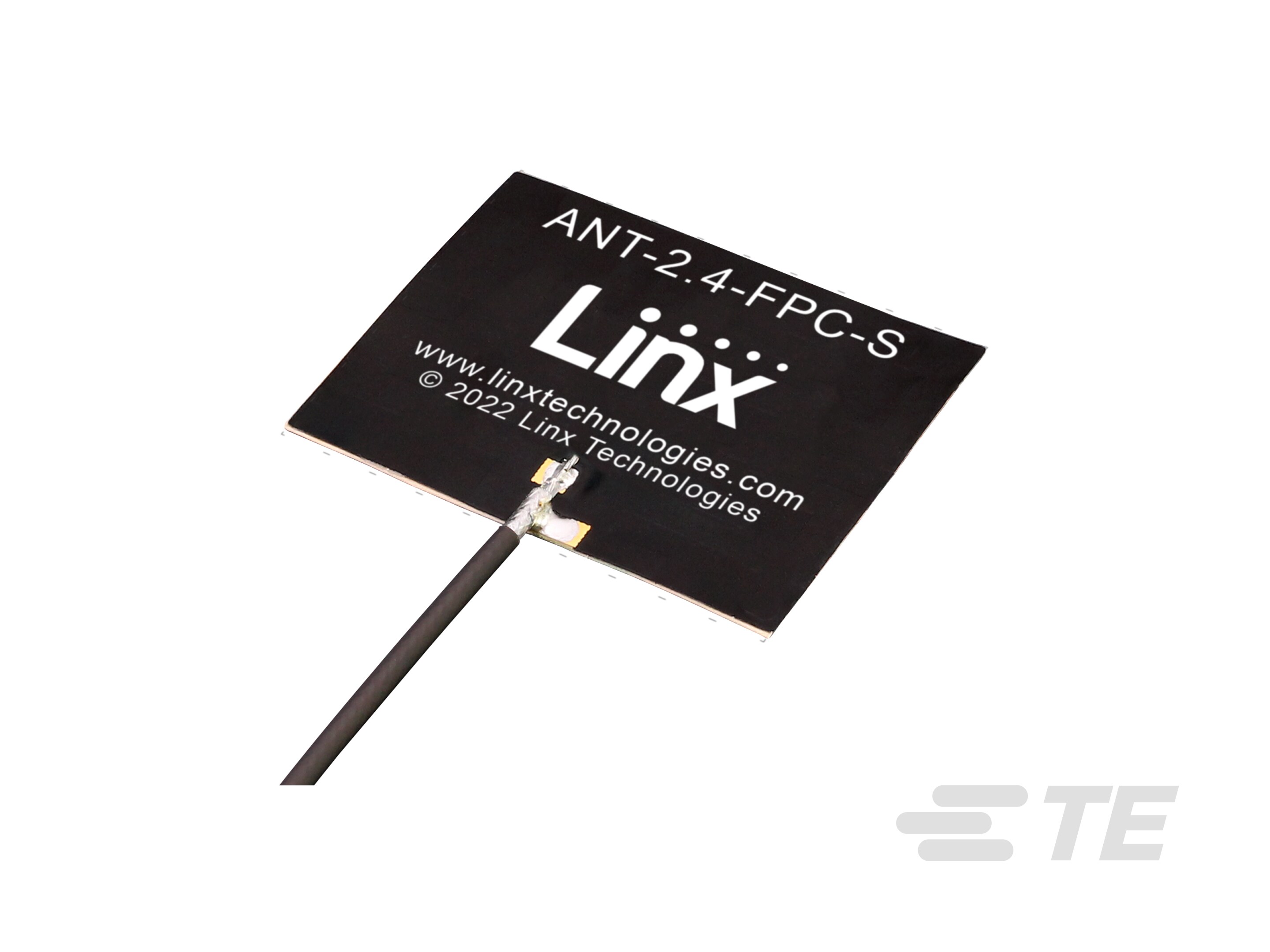

ANTENNA 2.4 FPC SH 25X20 150 MHF4

Part	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Height (Max) [z]	Height (Max) [z]	VSWR	Mounting Type	Features	Applications	Power - Max [Max]	Termination	Gain	Features	Termination
TE Connectivity AMP Connectors ANT-2.4-FPC-SH150M4	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable - 150mm	Bluetooth ISM Wi-Fi Zigbee™	2 W	MHF4	4 dBi

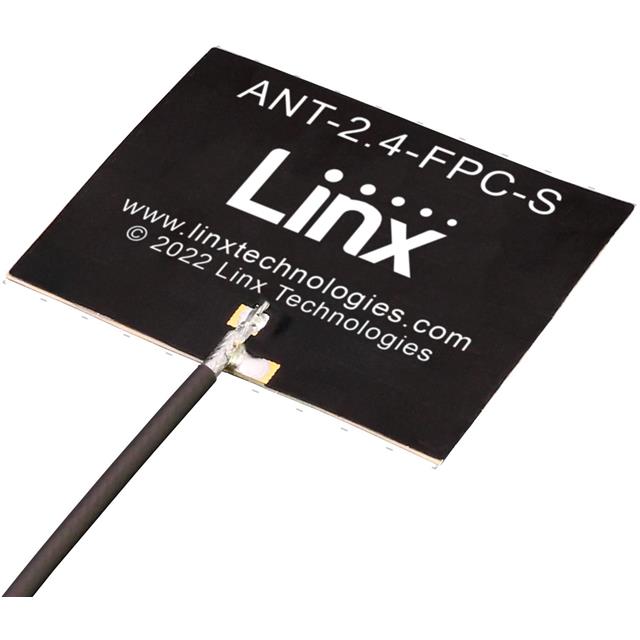

TE Connectivity AMP Connectors ANT-2.4-FPC-SH100M4	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable	Bluetooth ISM Wi-Fi Zigbee™	2 W	MHF4	4 dBi	100 mm
TE Connectivity AMP Connectors ANT-2.4-FPC-SH200M4	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable - 200mm	Bluetooth ISM Wi-Fi Zigbee™	2 W	MHF4	4 dBi
TE Connectivity AMP Connectors ANT-2.4-FPC-SH100UF	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable	Bluetooth ISM Wi-Fi Zigbee™	2 W	I-PEX MHF1 IPEX MHF1	4 dBi	100 mm	U.FL
TE Connectivity AMP Connectors ANT-2.4-FPC-SH50M4	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable - 50mm	Bluetooth ISM Wi-Fi Zigbee™	2 W	MHF4	4 dBi
TE Connectivity AMP Connectors ANT-2.4-FPC-SH150UF	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable - 150mm	Bluetooth ISM Wi-Fi Zigbee™	2 W	I-PEX MHF1 IPEX MHF1	4 dBi		U.FL
TE Connectivity AMP Connectors ANT-2.4-FPC-SH50UF	1	2.5 GHz	2.4 GHz	PCB Trace	0.004 in	0.1 mm	1.4	Adhesive	Cable - 50mm	Bluetooth ISM Wi-Fi Zigbee™	2 W	I-PEX MHF1 IPEX MHF1	4 dBi		U.FL
