C1700 Series

Catalog

CBL RIBN 10COND TWIST-PAIR

Part	Insulation Resistance	Conductor Material	Voltage	Cable Type	Ribbon Thickness	Ribbon Thickness	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Width [custom]	Ribbon Width [custom]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Features	Number of Conductors	Wire Gauge	Shielding	Pitch	Pitch	Ratings
3M Electronic Specialty C1700/10 315	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	315 ft	96.01 m	-20 ░C	105 ░C	12.7 mm	0.5 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Zippable	10	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/20 100	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	25.4 mm	1 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Zippable	20	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/40 100	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	50.8 mm	2 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Zippable	40	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/10 100SF	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	12.7 mm	0.5 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Splice Free Zippable	10	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/20 100SF	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	25.4 mm	1 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Splice Free Zippable	20	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/10 100	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	12.7 mm	0.5 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)		10	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462

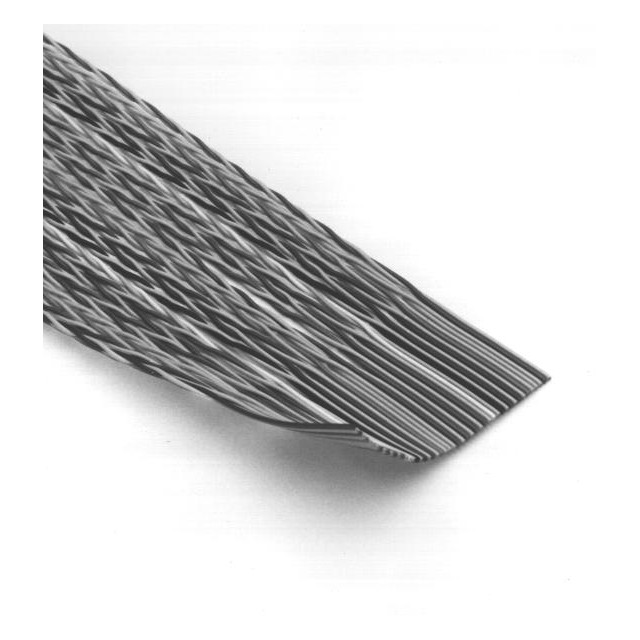

3M Electronic Specialty C1700/48TN 100	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C			36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Zippable	48	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
3M Electronic Specialty C1700/40TB 100	1 GOhms	Copper Tinned	300 VDC	Flat Twisted Pair	0.08 in	2.03 mm	100 '	30.48 m	-20 ░C	105 ░C	50.8 mm	2 in	36 AWG	7 Strands	Multiple	Poly-Vinyl Chloride (PVC)	Zippable	40	28 AWG	Unshielded	0.05 in	1.27 mm	UL Style 20462
