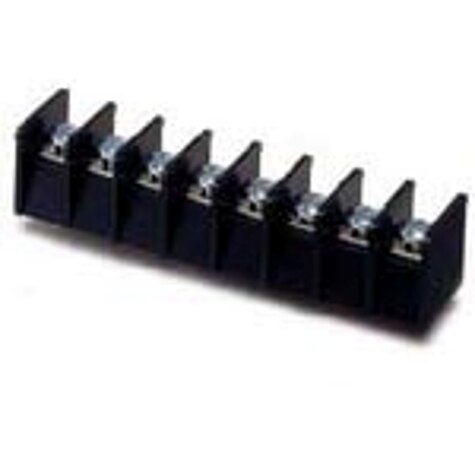

A38 Series
Barrier Terminal Blocks Single Row TRM BLK A3000
Manufacturer: Eaton - Electronics Division
Catalog
Barrier Terminal Blocks Single Row TRM BLK A3000
Beta
⌘K
Barrier Terminal Blocks Single Row TRM BLK A3000
Barrier Terminal Blocks Single Row TRM BLK A3000
Barrier Terminal Blocks Single Row TRM BLK A3000
| Part | Terminal Screw Finish | Material Flammability Rating | Operating Temperature | Terminal Screw Material | Mounting Type | Material - Insulation | Current Rating (Amps) | Number of Rows | Number of Wire Entries | Barrier Type | Pitch | Pitch | Terminal Block Type | Voltage Rating | Color | Top Termination | Features | Bottom Termination | Number of Circuits | Wire Gauge [Max] | Wire Gauge [Min] | Bottom Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | Nickel | UL94 V-0 | 105 C | Brass | Chassis Panel | Thermoplastic | 30 A | 1 | 14 | 2 Wall (Dual) | 0.437 " | 11.1 mm | Barrier Block | 600 V | Black | Screws | Flange | Solder Turret Insulated | 14 | 22 AWG | 10 AWG | |
 Eaton - Electronics Division | Nickel | UL94 V-0 | 105 C | Brass | Chassis Panel | Thermoplastic | 30 A | 1 | 6 | 2 Wall (Dual) | 0.437 " | 11.1 mm | Barrier Block | 600 V | Black | Screws | Flange | Quick Connect | 6 | 22 AWG | 10 AWG | 0.25 in |
