794467 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

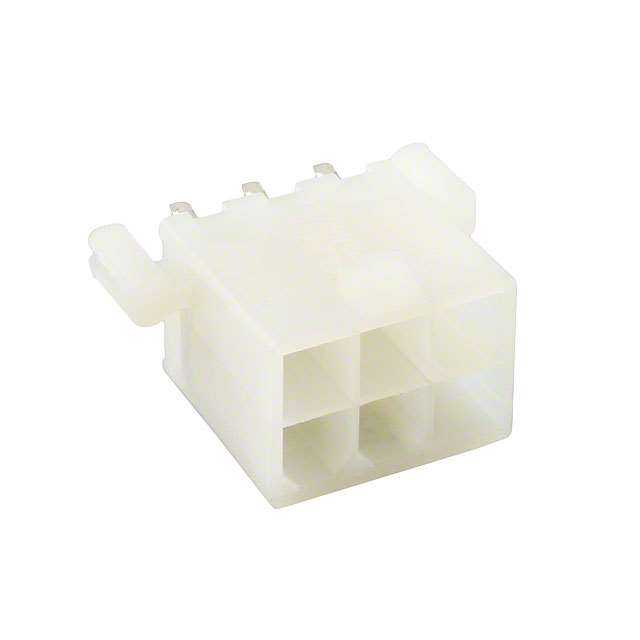

CONN HEADER VERT 6POS 4.2MM
| Part | Insulation Material | Mounting Type | Insulation Color | Insulation Height [z] | Insulation Height [z] | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Style | Features | Contact Finish - Post | Contact Material | Connector Type | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Number of Positions | Voltage Rating | Contact Shape | Number of Positions Loaded | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Termination | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | Through Hole | Natural | 12.8 mm | 0.504 " | 0.138 in | 3.5 mm | 0.165 in | 4.2 mm | 118.1 µin | 3 µm | Male Pin | Board to Board Cable | Board Lock | Tin | Copper Alloy | Header | 2 | 0.165 in | 4.2 mm | UL94 V-0 | 6 | 600 VAC | Square | All | Locking Ramp | -55 C | 105 ░C | Shrouded - 4 Wall | Solder | |
 TE Connectivity AMP Connectors | Nylon Polyamide (PA) | Through Hole | Natural | 12.8 mm | 0.504 " | 0.138 in | 3.5 mm | 0.165 in | 4.2 mm | 118.1 µin | 3 µm | Male Pin | Board to Board Cable | Board Lock | Tin-Lead | Copper Alloy | Header | 2 | 0.165 in | 4.2 mm | UL94 V-0 | 6 | 600 VAC | Square | All | Locking Ramp | -55 C | 105 ░C | Shrouded - 4 Wall | Solder | Tin-Lead |
