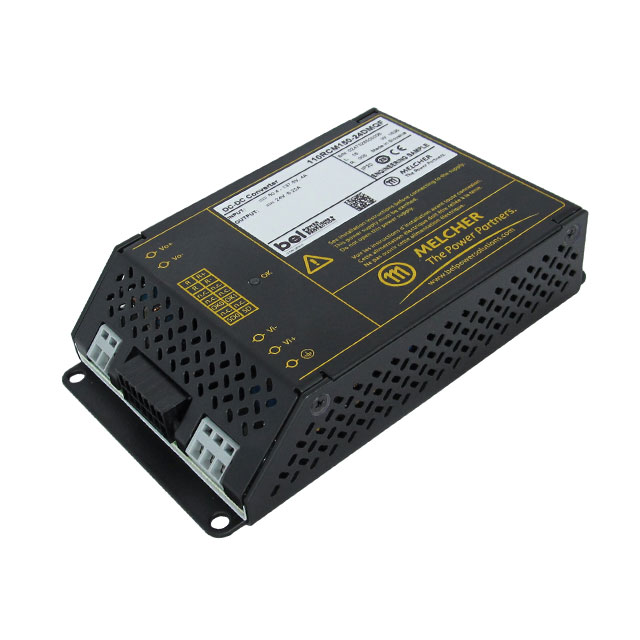

110RCM150 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT POWER SUPPLY
| Part | Mounting Type | Efficiency | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Type | Voltage - Output 1 | Voltage - Input (Min) [Min] | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Voltage - Input (Max) [Max] | Applications | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Chassis Mount | 93 % | 6.25 A | 70 °C | -40 C | 4.2 kV | Conformal Coated Enclosed | 24 V | 50.4 V | CE | 6.48 " | 36.1 mm | 96 mm | 1.42 " | 164.6 mm | 3.78 in | 1 | 137.5 V | ITE (Commercial) Railway | 150 W |
 Bel Fuse Inc. | Chassis Mount | 93 % | 6.25 A | 70 °C | -40 C | 4.2 kV | Conformal Coated Enclosed | 24 V | 50.4 V | CE | 6.48 " | 36.1 mm | 96 mm | 1.42 " | 164.6 mm | 3.78 in | 1 | 137.5 V | ITE (Commercial) Railway | 150 W |
Bel Fuse Inc. | Chassis Mount | 93 % | 6.25 A | 70 °C | -40 C | 4.2 kV | Conformal Coated Enclosed | 24 V | 50.4 V | CE | 6.48 " | 36.1 mm | 96 mm | 1.42 " | 164.6 mm | 3.78 in | 1 | 137.5 V | ITE (Commercial) Railway | 150 W |
Bel Fuse Inc. | Chassis Mount | 92.5 % | 12.5 A | 70 °C | -40 C | 4.2 kV | Conformal Coated Enclosed | 12 V | 50.4 V | CE | 6.48 " | 36.1 mm | 96 mm | 1.42 " | 164.6 mm | 3.78 in | 1 | 137.5 V | ITE (Commercial) Railway | 150 W |
