3RT1456 Series

Manufacturer: Siemens

Catalog

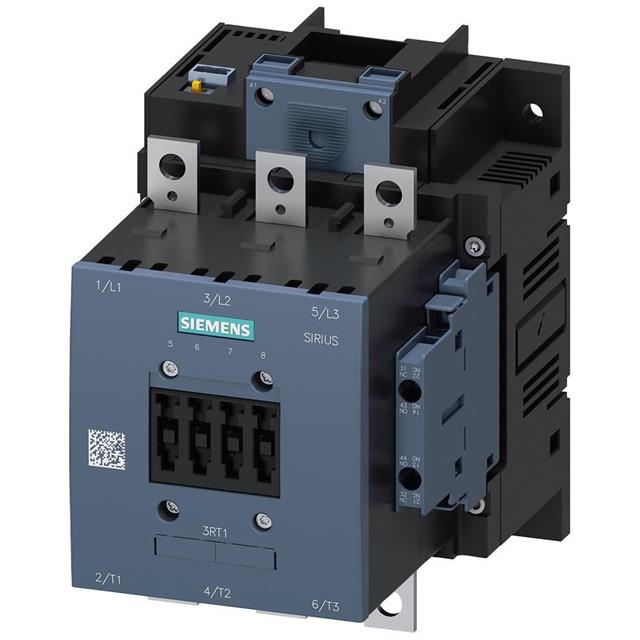

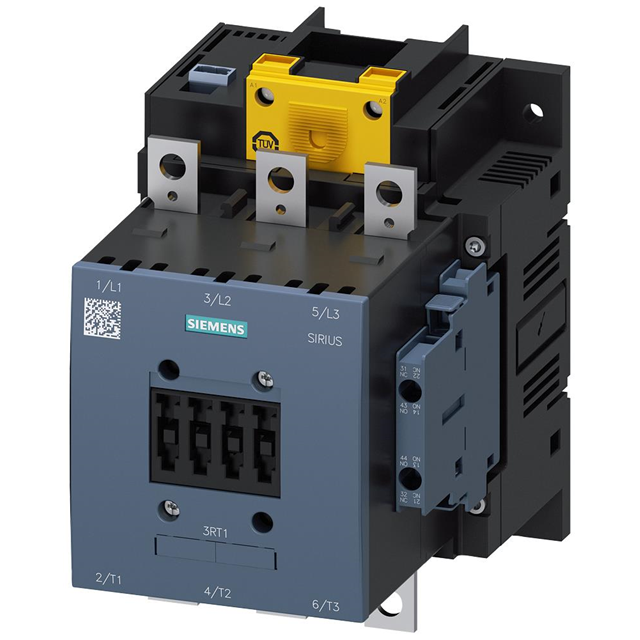

CONTACTOR. 275 A/1-PH

Part	Operate Time	Coil Power	Release Time	Coil Voltage [Min]	Coil Voltage [Max]	Termination Style	Contact Rating (Current)	Switching Voltage [Max]	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Voltage	Must Operate Voltage
Siemens 3RT14566AP380PA5	95 ms	360 W	60 ms	220 VAC	240 VAC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566LA06	95 ms		60 ms			Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566SP36	75 ms	320 W	130 ms	200 VAC/DC	277 VAC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566SF36	75 ms	320 W	130 ms	96 VAC/DC	127 VAC/DC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14562AR380PB0
Siemens 3RT14566AB380PA5	95 ms	360 W	60 ms	23 VAC/DC	26 VAC/DC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566AP36	95 ms	360 W	60 ms	220 VAC	240 VAC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566XB460LA2	75 ms	320 W	90 ms			Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-40 C	70 °C	3PST-NO (3 Form A)	24 VDC	16.8 VDC
Siemens 3RT14566SP363PA0	75 ms	320 W	130 ms	200 VAC/DC	277 VAC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	3PST-NO (3 Form A)
Siemens 3RT14566NB36	75 ms	320 W	90 ms	21 VAC/DC	27.3 VAC/DC	Screw Terminal	275 A	1000 VAC	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	55 °C	3PST-NO (3 Form A)
