EM3526 Series

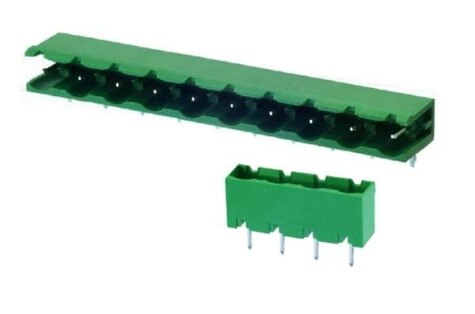

Pluggable Terminal Blocks 7P EM3526 Series HC
Manufacturer: Eaton - Electronics Division
Catalog
Pluggable Terminal Blocks 7P EM3526 Series HC
Beta
⌘K
Pluggable Terminal Blocks 7P EM3526 Series HC
Pluggable Terminal Blocks 7P EM3526 Series HC
Pluggable Terminal Blocks 7P EM3526 Series HC
| Part | Number of Positions | Color | Positions Per Level [custom] | Voltage - UL | Termination Style | Mounting Type | Number of Levels | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Type | Contact Mating Finish | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 7 | Green | 7 | 300 V | Solder | Through Hole | 1 | 90° Right Angle | -40 C | 105 ░C | Header Male Pins Shrouded (4 Side) | Tin | 0.3 in | 7.62 mm |
