GBC13D Series

Catalog

CONN HEADER SMD 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Material Flammability Rating	Contact Type	Number of Positions	Termination	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Insulation Material	Contact Finish - Mating	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Height	Insulation Height	Connector Type	Current Rating (Amps)	Style	Contact Shape	Insulation Color

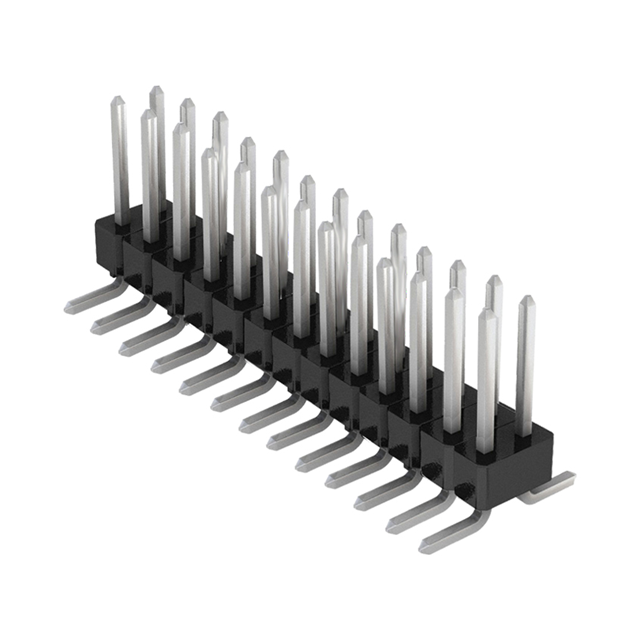

Sullins Connector Solutions GBC13DABN-M30	2.54 µm	100 µin	Unshrouded	0.1 "	2.54 mm	Surface Mount	Phosphor Bronze	UL94 V-0	Male Pin	26	Solder	Push-Pull	0.1 in	2.54 mm	0.23 in	5.84 mm	0.25 µm	10 µin	All	Nylon 9T Polyamide (PA9T)	Gold	2	150 °C	-65 ░C	Tin	0.1 in	2.54 mm	Header Breakaway	3 A	Board to Board Cable	Square	Black
