CGS VE Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

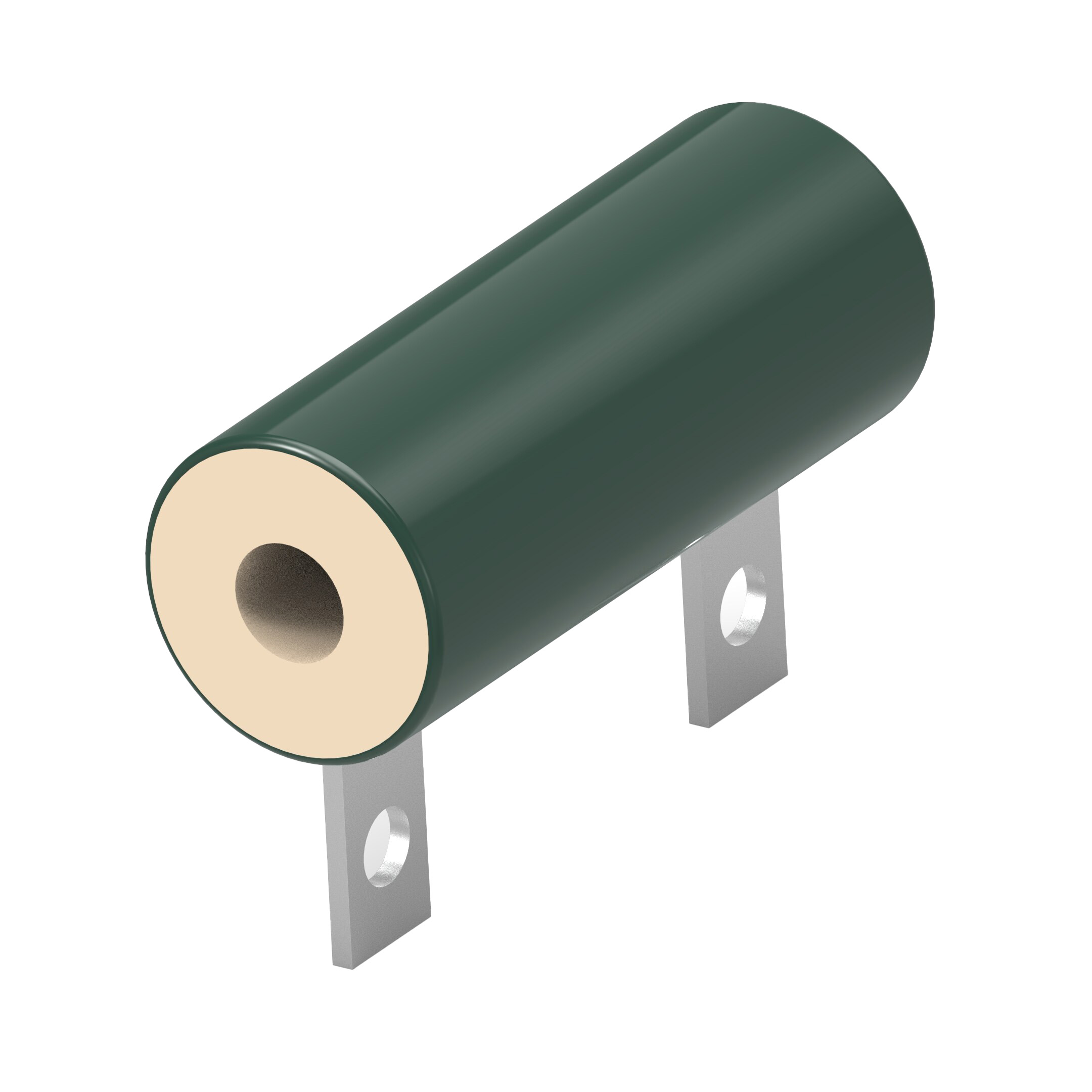

VE 90W 5R6 5% SOLDER LUG

...

Part	Temperature Coefficient	Tolerance	Coating, Housing Type	Resistance	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Power (Watts)	Mounting Feature	Lead Style	Package / Case	Composition	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]
TE Connectivity AMP Connectors VE905R6JS	120 ppm/°C	5 %	Vitreous Enamel Coated	5.6 Ohms	23 mm	101.6 mm	0.906 in	4 in	90 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C
TE Connectivity AMP Connectors VE300180RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	180 Ohms	33.3 mm		1.311 "		300 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	203.2 mm	8 in
TE Connectivity AMP Connectors VE220470RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	470 Ohms	33.3 mm		1.311 "		220 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	152.4 mm	6 "
TE Connectivity AMP Connectors VE2547RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	47 Ohms	15.1 mm		0.594 "		25 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	50.8 mm	2 in
TE Connectivity AMP Connectors VE30047RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	47 Ohms	33.3 mm		1.311 "		300 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	203.2 mm	8 in
TE Connectivity AMP Connectors VE300560RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	560 Ohms	33.3 mm		1.311 "		300 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	203.2 mm	8 in
TE Connectivity AMP Connectors VE5003K3JS	120 ppm/°C	5 %	Vitreous Enamel Coated	3300 Ohms	33.3 mm		1.311 "		500 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	304.8 mm	12 "
TE Connectivity AMP Connectors VE90820RJS	120 ppm/°C	5 %	Vitreous Enamel Coated	820 Ohms	23 mm	101.6 mm	0.906 in	4 in	90 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C
TE Connectivity AMP Connectors VE903K9JS	120 ppm/°C	5 %	Vitreous Enamel Coated	3.9 kOhms	23 mm	101.6 mm	0.906 in	4 in	90 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C
TE Connectivity AMP Connectors VE2203K3JS	120 ppm/°C	5 %	Vitreous Enamel Coated	3300 Ohms	33.3 mm		1.311 "		220 W	Flanges	Solder Lugs	Radial Tubular	Wirewound	-55 C	300 °C	152.4 mm	6 "
