PAA500 Series

Enclosed Power Supply 48V 500 Watt

Manufacturer: TT Electronics/BI

Catalog

Enclosed Power Supply 48V 500 Watt

Catalog

Enclosed Power Supply 48V 500 Watt

Part	Mounting Type	Efficiency	Applications	Voltage - Isolation	Voltage - Output 1	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Approval Agency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features	Power (Watts)	Power (Watts)	Type	Current - Output 1

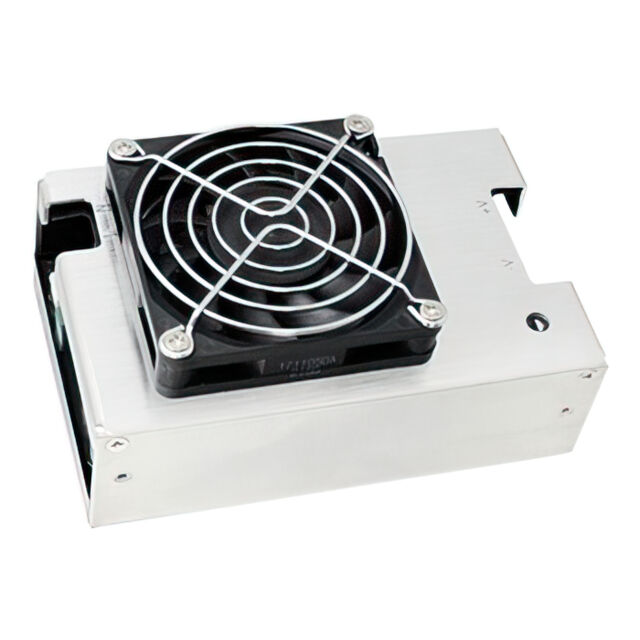

TT Electronics/BI PAA500-12B	Chassis Mount	90.5 %	ITE (Commercial)	4000 V	12 V	1	264 VAC	90 VAC	80 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	1.57 "	40 mm	83 mm	PFC Universal Input	330 W	498 W	Open Frame	41.5 A

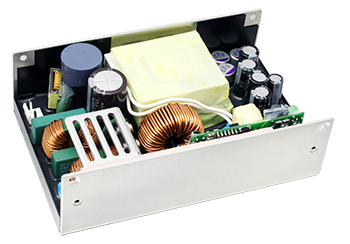

TT Electronics/BI PAA500-14B	Chassis Mount	91 %	ITE (Commercial)	4000 V	24 V	1	264 VAC	90 VAC	80 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	1.57 "	40 mm	83 mm	PFC Universal Input	330 W	499 W	Open Frame	20.8 A
TT Electronics/BI PAA500-18B	Chassis Mount	92 %	ITE (Commercial)	4000 V	48 V	1	264 VAC	90 VAC	80 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	1.57 "	40 mm	83 mm	PFC Universal Input	330 W	500 W	Open Frame	10.41 A
TT Electronics/BI PAA500-14C	Chassis Mount	90.5 %	ITE (Commercial)	4000 V	24 V	1	264 VAC	90 VAC	70 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	2.45 in	62.3 mm	83 mm	PFC Universal Input	500 W		Enclosed	20.8 A
TT Electronics/BI PAA500-18C	Chassis Mount	91.5 %	ITE (Commercial)	4000 V	48 V	1	264 VAC	90 VAC	70 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	2.45 in	62.3 mm	83 mm	PFC Universal Input	500 W		Enclosed	10.41 A
TT Electronics/BI PAA500-12C	Chassis Mount	90 %	ITE (Commercial)	4000 V	12 V	1	264 VAC	90 VAC	70 °C	-30 °C	60950-1 62368-1	CB CE cURus	130 mm	5.12 in	3.27 in	2.45 in	62.3 mm	83 mm	PFC Universal Input	500 W		Enclosed	41.5 A
