TX2-H Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K

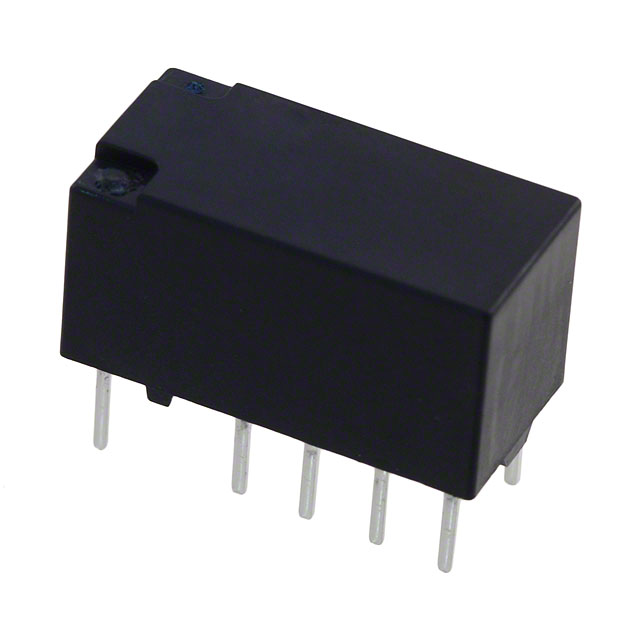

RELAY TELECOM DPDT 2A 5V
| Part | Coil Resistance | Load - Max Switching | Coil Voltage | Termination Style | Release Time | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Contact Form | Seal Rating | Coil Type | Operate Time | Contact Rating (Current) | Contact Material | Relay Type | Coil Current | Switching Voltage [Max] | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | 178 Ohms | 60 W 440 VA | 5 VDC | PC Pin | 4 ms | 3.75 VDC | 85 °C | -40 C | 0.5 VDC | DPDT (2 Form C) | Sealed - Fully | Non Latching | 4 ms | 2 A | Gold (Au) Silver (Ag) | Telecom | 28.1 mA | 220 VDC | BSI cURus | Through Hole |
 Panasonic Electronic Components | 1030 Ohms | 60 W 440 VA | 12 VDC | PC Pin | 4 ms | 9 VDC | 85 °C | -40 C | 1.2 VDC | DPDT (2 Form C) | Sealed - Fully | Non Latching | 4 ms | 2 A | Gold (Au) Silver (Ag) | Telecom | 11.7 mA | 220 VDC | BSI cURus | Through Hole |
Panasonic Electronic Components | 4.11 kOhms | 60 W 440 VA | 24 VDC | PC Pin | 4 ms | 18 VDC | 85 °C | -40 C | 2.4 VDC | DPDT (2 Form C) | Sealed - Fully | Non Latching | 4 ms | 2 A | Gold (Au) Silver (Ag) | Telecom | 5.8 mA | 220 VDC | BSI cURus | Through Hole |
