224932 Series

Manufacturer: Molex

Catalog

10.00MM PITCH LEVER ACTIVATED FIXED MOUNT PCB TERMINAL BLOCK, 35° WIRE ENTRY, LEFT FRONT TERMINAL, 4 CIRCUITS

Part	Number of Levels	Wire Termination	Positions Per Level	Features	Mating Orientation	Wire Gauge [Min]	Wire Gauge [Max]	Color	Pitch	Pitch	Mounting Type	Current	Voltage	Positions Per Level [custom]

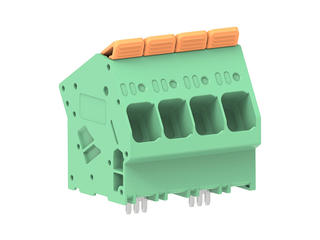

Molex 2249320004	1	Leg Spring Push-In Spring	4	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
Molex 2249320007	1	Leg Spring Push-In Spring		Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV	7
Molex 2249320012	1	Leg Spring Push-In Spring	12	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV

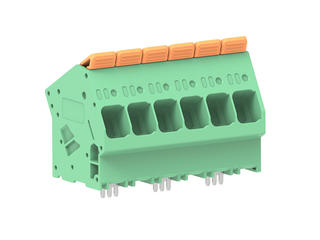

Molex 2249320006	1	Leg Spring Push-In Spring	6	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV

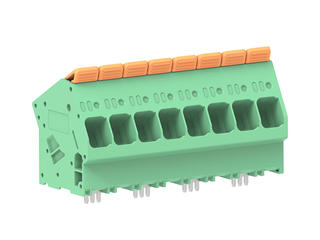

Molex 2249320008	1	Leg Spring Push-In Spring	8	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV

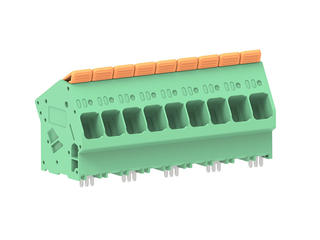

Molex 2249320009	1	Leg Spring Push-In Spring	9	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
Molex 2249320003	1	Leg Spring Push-In Spring	3	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
Molex 2249320002	1	Leg Spring Push-In Spring	2	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
Molex 2249320005	1	Leg Spring Push-In Spring	5	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
Molex 2249320011	1	Leg Spring Push-In Spring	11	Lever Actuated	35° (145°) Angle with Board	4 AWG	18 AWG	Green	0.394 in	10 mm	Through Hole	66 A	1 kV
