6200FE Series
Manufacturer: Belden Inc.
Beta
⌘K

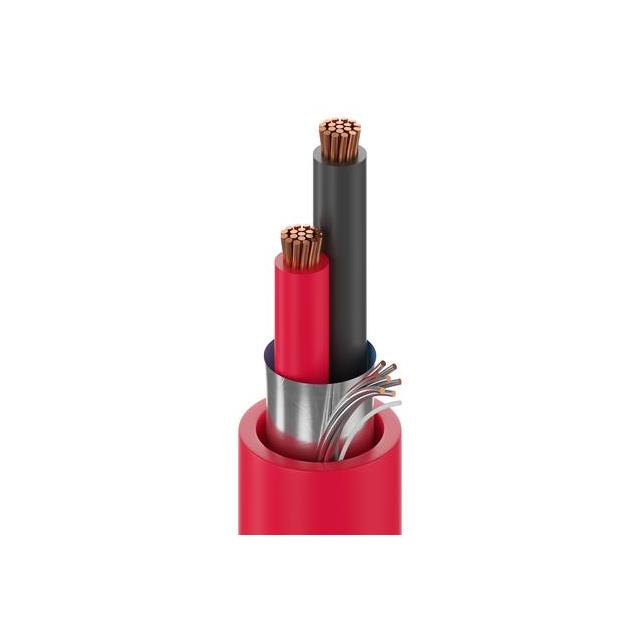

CABLE 2COND 16AWG NAT SHLD 500'
| Part | Shield Material | Shield Coverage | Jacket Color | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Shield Type | Usage | Jacket (Insulation) Material | Wire Gauge | Length | Length | Cable Type | Conductor Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Natural | Low Smoke Poly-Vinyl Chloride (LSPVC) | 75 ░C | 0 °C | UL Style CMP | 19 | 29 | 0.381 mm | 0.015 in | Drain Wire Rip Cord | 4.78 mm | 0.188 " | 2 | 300 VDC | Foil | Security Sound | Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum | 16 AWG | 152.4 m | 500 ft | Multi-Conductor | Copper Tinned |
