H2055 Series
Manufacturer: Harwin Inc.
Beta
⌘K

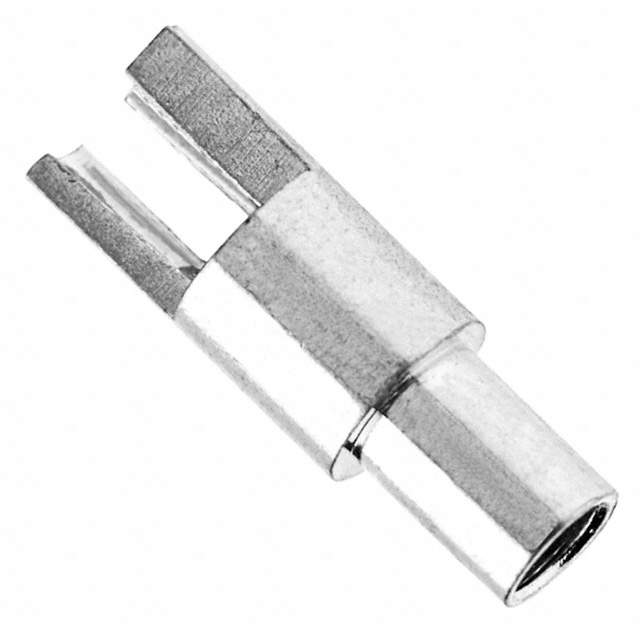

TERMINAL, TURRET, 2.48MM, NON INSULATED ROHS COMPLIANT: YES
| Part | Terminal Type | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Staking Side ID [Max] | Staking Side ID [Min] | Staking Side ID [Max] | Staking Side ID [Min] | Insulation | Length - Overall [x] | Length - Overall [x] | Contact Material | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Min] [diameter] | Mounting Hole Diameter [Max] [diameter] | Mounting Hole Diameter [Max] [diameter] | Number of Turrets | Termination | Staking Side OD [Max] [diameter] | Staking Side OD [Min] [diameter] | Staking Side OD [Max] [diameter] | Staking Side OD [Min] [diameter] | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Board [x] | Length - Above Board [x] | Board Thickness [custom] | Board Thickness [custom] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Fork Hollow Single End | 0.13 " | 0.125 " | 3.18 mm | 3.3 mm | 0.07 in | 0.067 in | 1.78 mm | 1.7 mm | Non-Insulated | 9.53 mm | 0.375 in | Brass Alloy | 0.094 " | 2.39 mm | 2.46 mm | 0.097 " | Single | Swage | 2.39 mm | 2.31 mm | 0.094 in | 0.091 in | Through Hole | 0.125 in | 3.18 mm | 6.35 mm | 0.25 in | 0.094 in | 2.39 mm | Tin |
