MS3102A32 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

AB 4C 4#4 PIN RECP

Part	Mounting Type	Color	Fastening Type	Current Rating Options	Orientation	Mounting Feature	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish - Mating	Shell Finish	Insert Material	Qualification	Termination	Primary Material	Shell Material	Applications	Contact Material	Grade	Number of Positions	Shielding	Connector Type	Ingress Protection	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating (DC)	Voltage Rating (AC)	Current Rating
Amphenol Aerospace Operations MS3102A32-17PW
Amphenol Aerospace Operations MS3102A32-7S	Panel Mount	Olive Drab	Threaded	13A 23A	N (Normal)	Flange	32 mm	7 mm	Silver	Cadmium Olive Drab Chromate	Neoprene	MIL-DTL-5015	Solder Cup	Metal	Aluminum Alloy	Marine Military	Copper Alloy	Military	35	Unshielded	Female Sockets Receptacle	Environment Resistant	125 °C	-55 °C
Amphenol Aerospace Operations MS3102A32-13S-RES
Amphenol Aerospace Operations MS3102A32-6S
Amphenol Aerospace Operations MS3102A32-20S

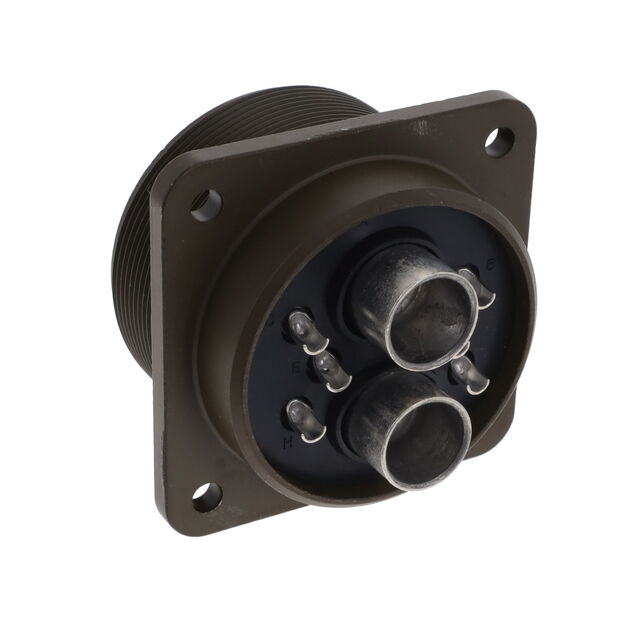

Amphenol Aerospace Operations MS3102A32-15P	Panel Mount	Olive Drab	Threaded	150A 23A	N (Normal)	Flange	32 mm	15 mm	Silver	Cadmium Olive Drab Chromate	Neoprene	MIL-DTL-5015	Solder Cup	Metal	Aluminum Alloy	Marine Military	Copper Alloy	Military	8	Unshielded	Male Pins Receptacle	Environment Resistant	125 °C	-55 °C	1250 VDC	900 VAC
Amphenol Aerospace Operations MS3102A32-1P
Amphenol Aerospace Operations MS3102A32-7P	Panel Mount	Olive Drab	Threaded	13A 23A	N (Normal)	Flange	32 mm	7 mm	Silver	Cadmium Olive Drab Chromate	Neoprene	MIL-DTL-5015	Solder Cup	Metal	Aluminum Alloy	Marine Military	Copper Alloy	Military	35	Unshielded	Male Pins Receptacle	Environment Resistant	125 °C	-55 °C
Amphenol Aerospace Operations MS3102A32-5S	Panel Mount	Olive Drab	Threaded		N (Normal)	Flange	32 mm	5 mm	Silver	Cadmium Olive Drab Chromate	Neoprene	MIL-DTL-5015	Solder Cup	Metal	Aluminum Alloy	Marine Military	Copper Alloy	Military	2	Unshielded	Female Sockets Receptacle	Environment Resistant	125 °C	-55 °C	1250 VDC	900 VAC	150 A
Amphenol Aerospace Operations MS3102A32-9P
