2520 Series

Catalog

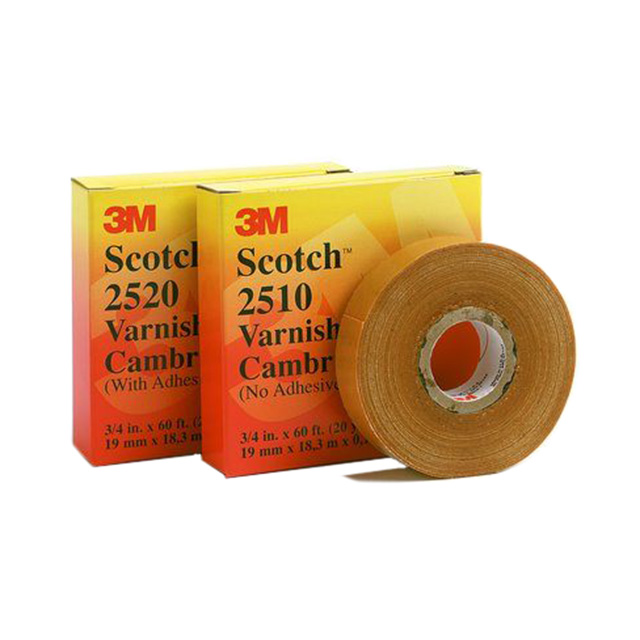

TAPE, PRESSURE SENSITIVE ADHESIVE, PRESSURE SENSITIVE ADHESIVE, COTTON FABRIC, YELLOW

Part	Shelf Life	Shelf Life Start	Width [x]	Width [x]	Tape Type	Backing, Carrier	Thickness	Thickness	Thickness	Temperature Range	Temperature Range	Length	Length	Length	Color	Adhesive	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Shrouding	Contact Material	Number of Rows [custom]	Current Rating (Amps)	Features	Termination	Number of Positions	Contact Shape	Material Flammability Rating	Contact Finish - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Mounting Type	Insulation Color	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Style	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Length - Mating [x]	Contact Length - Mating [x]
3M Electronic Specialty 2520-2X36YD	60 Months	Date of Manufacture	50.8 mm	2 in	Cambric Tape	Cotton Cloth	8 mils	0.203 mm	0.008 in	105 °C	221 °F	32.9 m	108 ft	36 yd	Black	Rubber
3M Electronic Specialty 2520-5002UG																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.38 µm	15 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull	0.112 in	2.84 mm	Right Angle Through Hole	Black	0.1 "	2.54 mm	0.338 in	8.59 mm	Board to Board Cable	-55 C	105 ░C
3M Electronic Specialty 2520-6002UG																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.38 µm	15 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull	0.112 in	2.84 mm	Through Hole	Black	0.1 "	2.54 mm			Board to Board Cable	-55 C	105 ░C	0.39 in	9.91 mm
3M Electronic Specialty 2520-1X36YD		Date of Manufacture	25.4 mm	1 in	Cambric Tape	Cotton Cloth	8 mils	0.203 mm	0.008 in	105 °C	221 °F	32.9 m	108 ft	36 yd	Black	Rubber
3M Electronic Specialty 2520-5002UB																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.76 Ám	30 Áin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull	0.112 in	2.84 mm	Right Angle Through Hole	Black	0.1 "	2.54 mm	0.338 in	8.59 mm	Board to Board Cable	-55 C	105 ░C
3M Electronic Specialty 2520-1-1/2X36YD		Date of Manufacture	38.1 mm	1.5 in	Cambric Tape	Cotton Cloth	8 mils	0.203 mm	0.008 in	105 °C	221 °F	32.9 m	108 ft	36 yd	Black	Rubber
3M Electronic Specialty 2520-60K2UB																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Kinked Pin Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.76 Ám	30 Áin	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull	0.112 in	2.84 mm	Through Hole	Gray	0.1 "	2.54 mm			Board to Board Cable	-55 C	105 ░C	0.39 in	9.91 mm
3M Electronic Specialty 2520-6003UB																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.76 Ám	30 Áin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull			Through Hole	Black	0.1 "	2.54 mm			Board to Board Cable	-55 C	105 ░C	0.39 in	9.91 mm	3.94 mm	0.155 "
3M Electronic Specialty 2520-5005EB																			Header	Shrouded - 4 Wall	Copper Alloy	2	2 A	Keying Slot	Wire Wrap	20	Square	UL94 V-0	Gold	Gold	0.76 Ám	30 Áin	Glass Filled Polybutylene Terephthalate (PBT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull			Right Angle Through Hole	Gray	0.1 "	2.54 mm	0.338 in	8.59 mm	Board to Board Cable	-55 C	105 ░C			15.49 mm	0.61 in	Flash	0.24 in	6.1 mm
3M Electronic Specialty 2520-6003UG																	200 µin	5.08 µm	Header	Shrouded - 4 Wall	Copper Alloy	2	1.75 A	Keying Slot	Solder	20	Square	UL94 V-0	Tin-Lead	Gold	0.38 µm	15 µin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	Male Pin	All	Push-Pull			Through Hole	Black	0.1 "	2.54 mm			Board to Board Cable	-55 C	105 ░C	0.39 in	9.91 mm	3.94 mm	0.155 "
