770967 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog

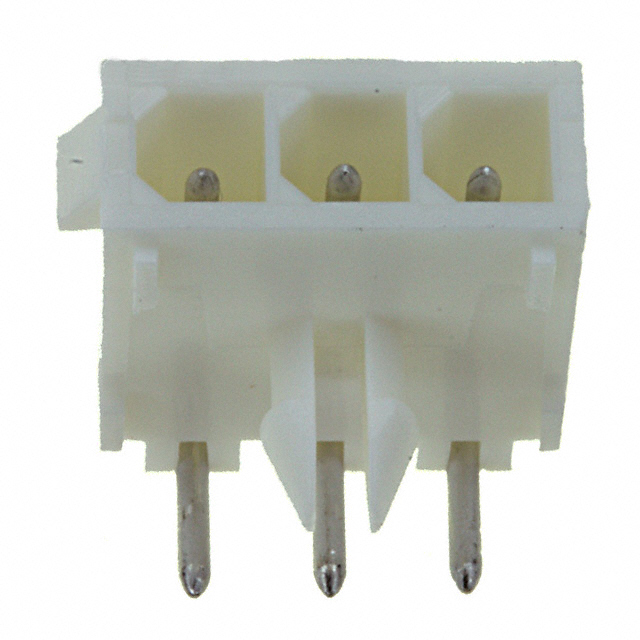

CONN HEADER R/A 3POS 4.14MM
| Part | Contact Finish Thickness - Post | Applications | Number of Positions Loaded | Connector Type | Contact Finish - Post | Material Flammability Rating | Voltage Rating | Insulation Height | Insulation Height | Shrouding | Mounting Type | Insulation Material | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Contact Type | Contact Shape | Number of Rows | Contact Material | Termination | Insulation Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3.81 Ám | General Purpose | All | Header | Tin-Lead | UL94 V-0 | 600 VAC | 5.72 mm | 0.225 in | Shrouded - 4 Wall | Right Angle Through Hole | Nylon Polyamide (PA) | Tin-Lead | 3.68 mm | 0.145 in | 0.163 in | 4.14 mm | 85 °C | -20 ░C | Varies by Wire Gauge | Board Lock | 150 Áin | 3.81 Ám | Board to Cable/Wire | Male Pin | Circular | 1 | Brass | Solder | White | Locking Ramp |
