2SKF131 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

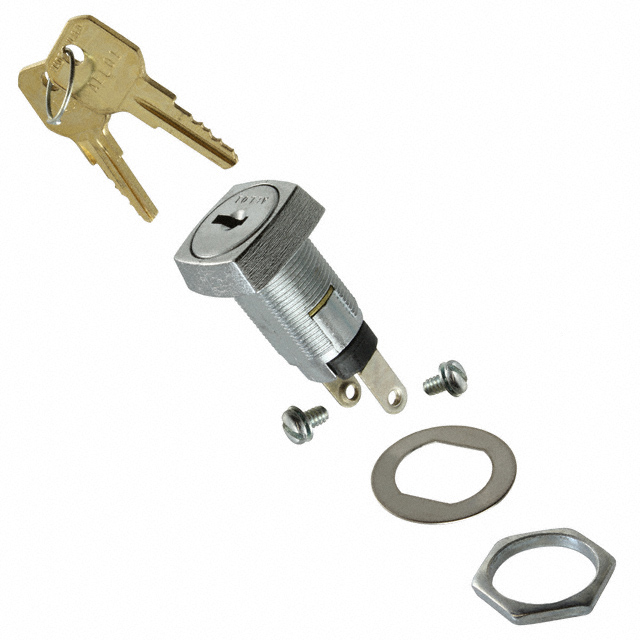

2SKF131AEL01=NON UL 110VAC
| Part | Current Rating (Amps) | Key Removable Positions | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Panel Cutout Dimensions [diameter] | Contact Material | Depth Behind Flange | Number of Positions | Electrical Life | Mechanical Life | Angle of Throw | Actuator Type | Voltage Rating - AC | Circuit | Contact Timing | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 A | 1 only | Off-On | -30 ░C | 85 °C | 19.2 mm | Silver (Ag) | 43.2 mm | 2 | 10000 Cycles | 10000 Steps | 90 ° | Flat Key | 120 V | SPST | Non-Shorting | Screw Terminal |
