2302 Series

Manufacturer: 3M (TC)

Catalog

CONN HEADER VERT 2POS

Part	Contact Finish - Mating	Current Rating (Amps)	Contact Shape	Style	Mounting Type	Number of Rows	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Termination	Overall Contact Length	Overall Contact Length	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Contact Length - Mating [x]	Contact Length - Mating [x]	Material Flammability Rating	Fastening Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Contact Length - Mating

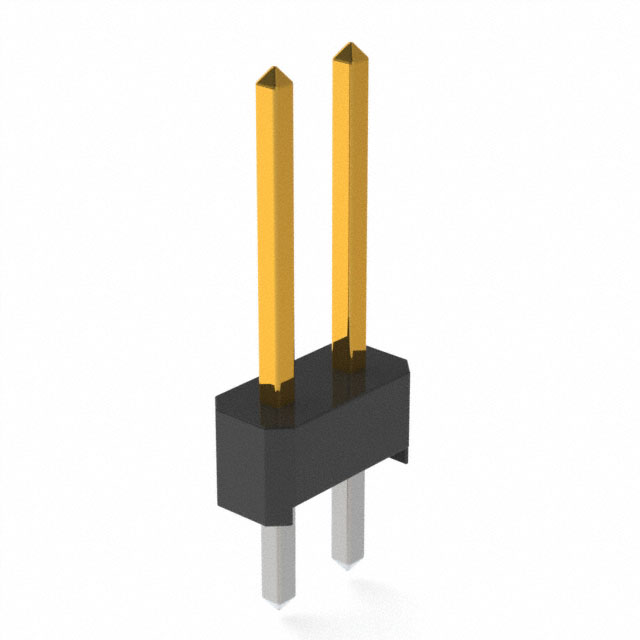

3M (TC) 2302-6221-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	2	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.538 "	13.67 mm	Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin	2.54 mm	0.1 in

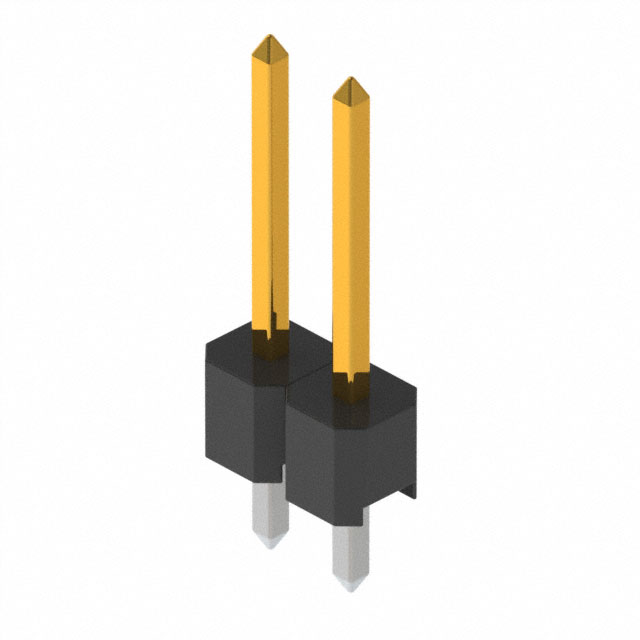

3M (TC) 2302-6211-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.538 "	13.67 mm	Header	2.54 Ąm 2.54 µm	100 Ąin 100 µin	2	Black	10 çin 10 Ąin	0.25 çm 0.25 Ąm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm

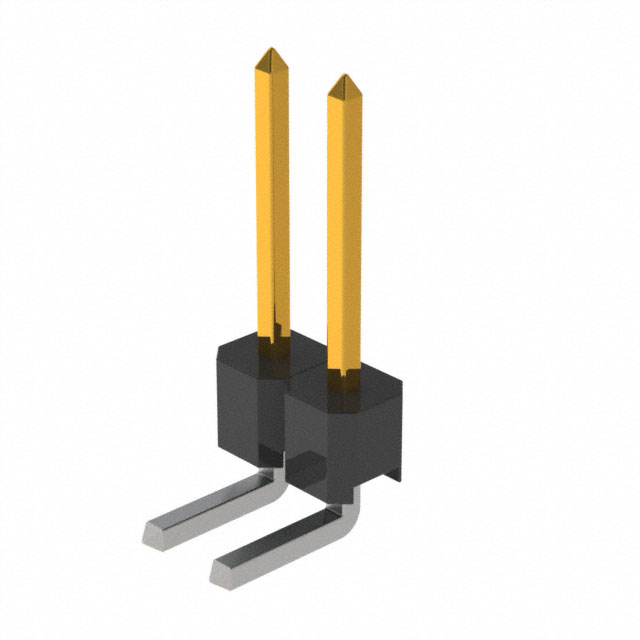

3M (TC) 2302-5211-TG	Gold	3 A	Square	Board to Board Cable	Through Hole Right Angle	1	All	0.12 in	3.05 mm	Copper Alloy	Solder			Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.318 "	8.08 mm	UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm

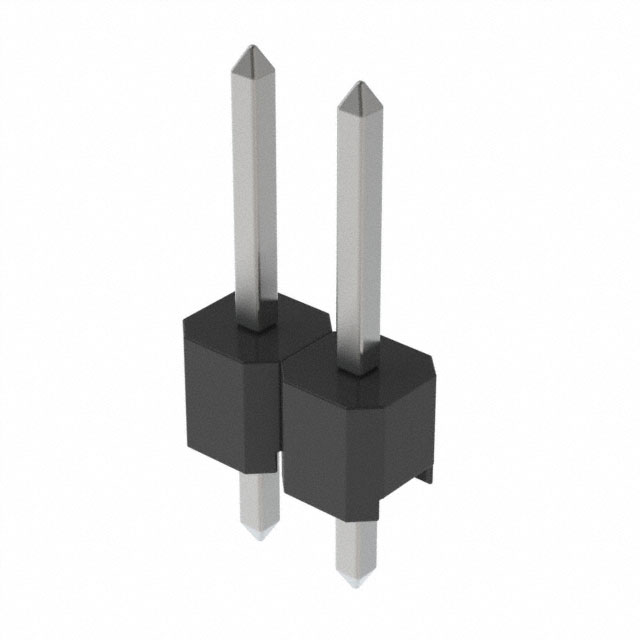

3M (TC) 2302-6111-TP	Tin-Lead	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.45 "	11.43 mm	Header	2.54 µm	100 µin	2	Black			Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm

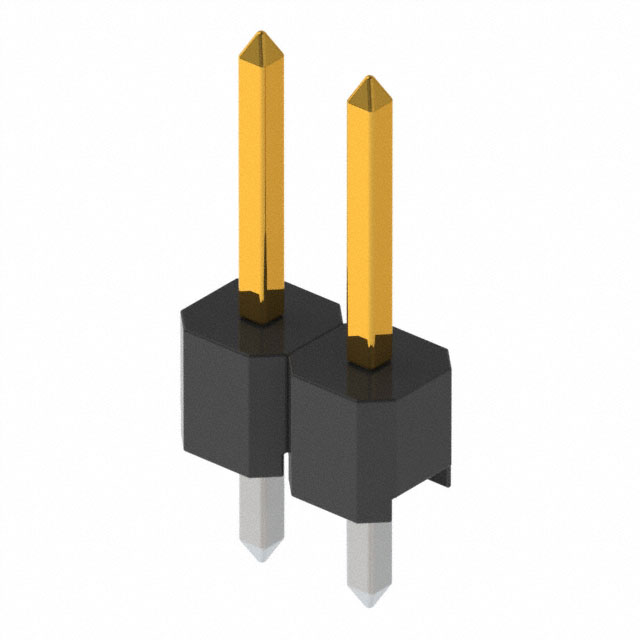

3M (TC) 2302-6111-TG	Gold	3 A	Square	Board to Board Cable	Through Hole	1	All	0.12 in	3.05 mm	Copper Alloy	Solder	0.45 "	11.43 mm	Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm

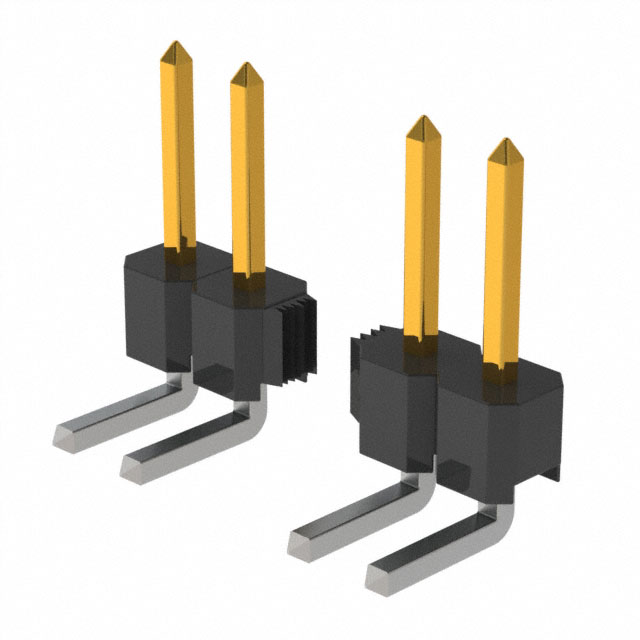

3M (TC) 2302-5111-TG	Gold	3 A	Square	Board to Board Cable	Through Hole Right Angle	1	All	0.12 in	3.05 mm	Copper Alloy	Solder			Header	2.54 µm	100 µin	2	Black	10 çin	0.25 çm	Tin-Lead	0.23 in		UL94 V-0	Push-Pull	0.1 in	2.54 mm	105 ░C	-55 °C	Unshrouded	Male Pin			0.1 in	2.54 mm	5.84 mm
