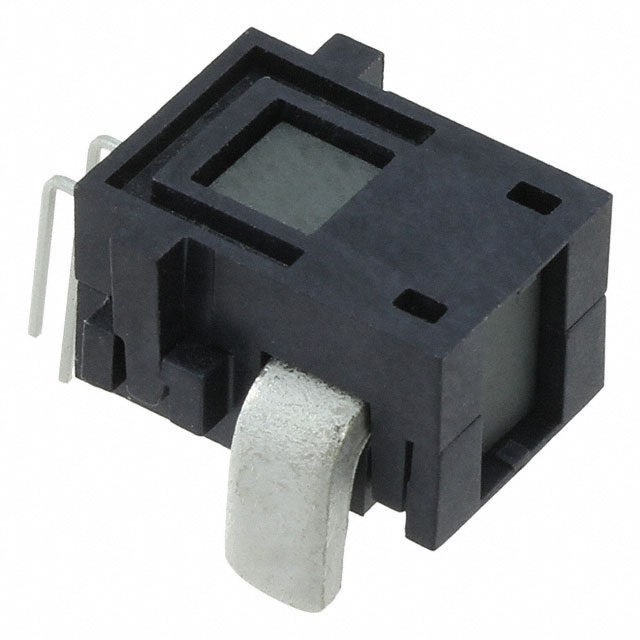

CQ206 Series
Manufacturer: Asahi Kasei Microdevices Corporation
Beta
⌘K
SENSOR CURRENT HALL 50A AC/DC
| Part | Sensitivity | Output | Package / Case | Mounting Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Sensing | Polarization | Frequency | Linearity | Current - Supply (Max) [Max] | Response Time | Number of Channels | For Measuring | Accuracy | Sensor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Asahi Kasei Microdevices Corporation | 45 mV/A | Ratiometric Voltage | Module | Through Hole | 4.5 V | 5.5 V | 90 °C | -40 °C | 46 A | Bidirectional | 400 kHz | 1 % | 9 mA | 1 µs | 1 | AC/DC | 1 % | Hall Effect Open Loop |
