4401-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

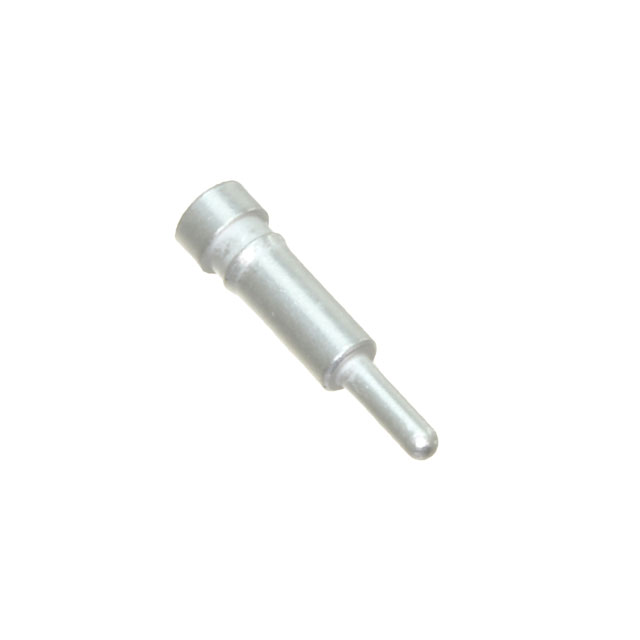

RECEPTACLE WITH A STANDARD TAIL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Min] | Tail Type | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Tail Diameter [diameter] | Tail Diameter [diameter] | Socket Depth | Socket Depth | Pin Hole Diameter [diameter] | Pin Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Termination | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.043 in | 1.09 mm | 0.94 mm | 0.037 in | Standard Tail | Beryllium Copper | 0.079 in | 2.01 mm | 1.02 mm | 0.04 " | 4.32 mm | 0.17 in | 1.37 mm | 0.054 in | 30 Áin | 0.76 Ám | Gold | Press-Fit | 9.65 mm | 0.38 in | 0.093 in | 2.36 mm |
