842-030 Series
Manufacturer: EDAC Inc.
Catalog

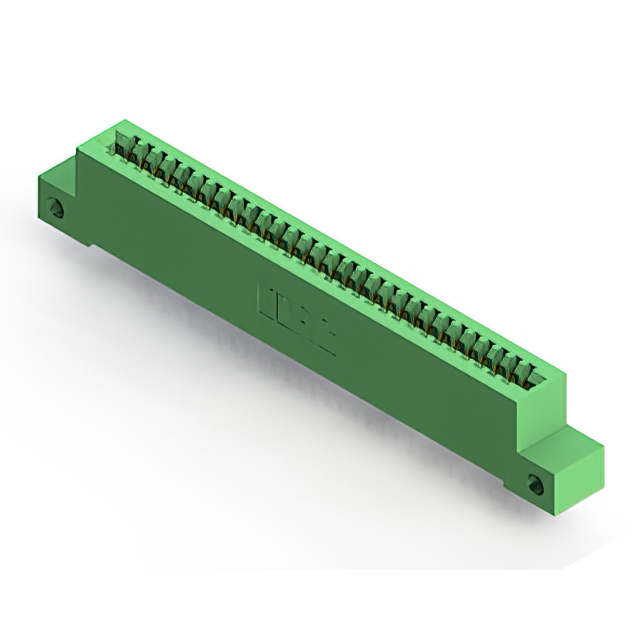

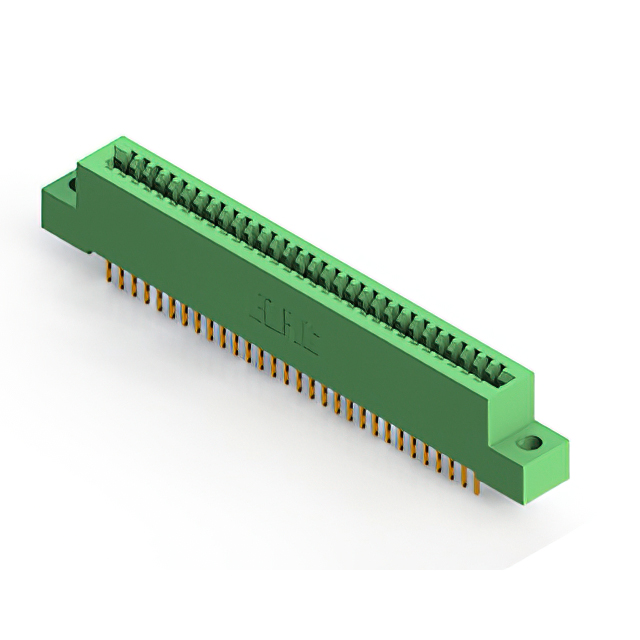

CONN EDGE SINGLE FML 30POS 0.100
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] | Card Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination Rows | Contact Type | Termination | Material - Insulation | Number of Positions | Contact Finish | Contact Material | Color | Mounting Type | Read Out | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole Right Angle | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 2 | Cantilever | Wire Wrap | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female | ||
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 2 | Cantilever | Wire Wrap | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 30 | Non Specified - Single Edge | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Single | 1 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole Right Angle | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
 EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 15 | Non Specified - Dual Edge | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 2 | Cantilever | Solder | Diallyl Phthalate (DAP) | 30 | Gold | Copper Alloy | Green | Through Hole | Dual | 2 | 125 °C | -40 °C | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Female |
