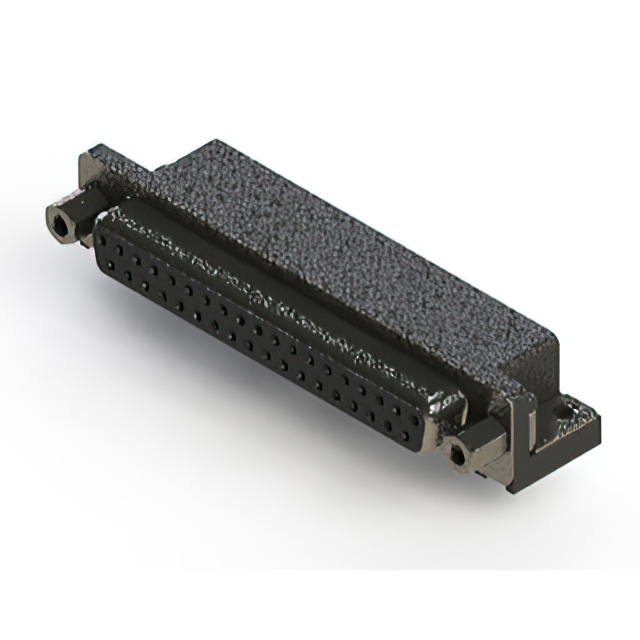

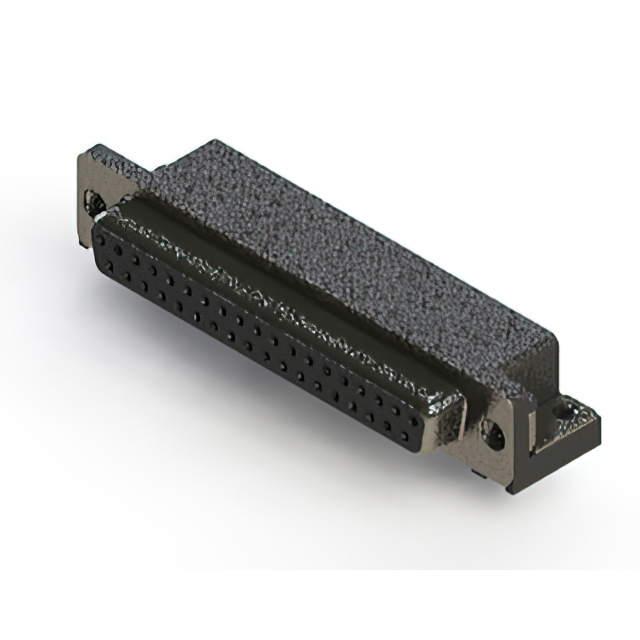

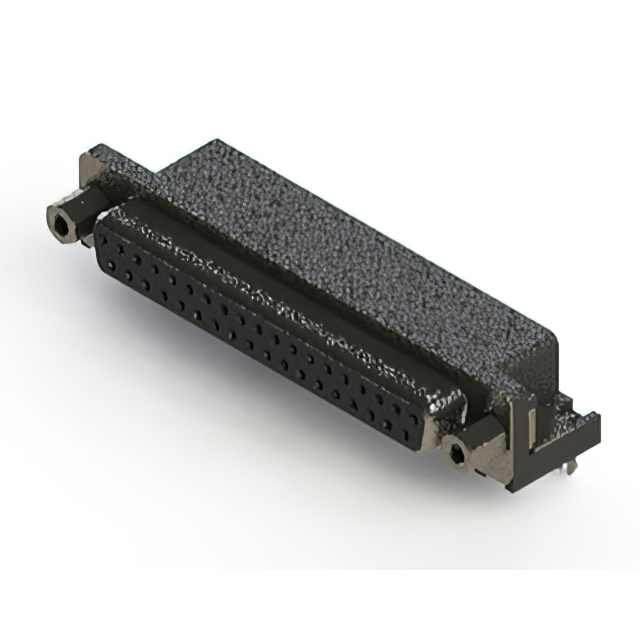

630-037 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB STANDARD CONNECTORS D-SUB RIGHT ANGLE CONNECTOR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Dielectric Material | Backset Spacing | Backset Spacing | Flange Feature | Mounting Type | Number of Positions | Contact Type | Number of Rows [custom] | Shell Material, Finish | Connector Style | Contact Finish | Material Flammability Rating | Current Rating (Amps) | Termination | Connector Type | Shell Size, Connector Layout | Shell Size, Connector Layout | Features | Contact Finish Thickness | Contact Finish Thickness | Contact Finish Thickness | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.38 µm | 15 µin | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.38 µm | 15 µin | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | Housing/Shell (M3) | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | Flash | |||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | 4-40 Mating Side Female Screwlock | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | Housing/Shell (Unthreaded) | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.38 µm | 15 µin | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | 4-40 Mating Side Female Screwlock | Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | Flash | |||
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | Housing/Shell (Unthreaded) | Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.76 Ám | 30 Áin | ||
 EDAC Inc. | -55 C | 85 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | Housing/Shell | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Board Lock Mounting Brackets Shielded | 0.76 Ám | 30 Áin | 4-40 | |
 EDAC Inc. | -55 C | 125 °C | Black | Copper Alloy | Polyester Thermoplastic | 10.4 mm | 0.409 in | Housing/Shell (M3) | Board Edge Right Angle Through Hole | 37 | Signal | 2 | Nickel Plated Steel | D-Sub | Gold | UL94 V-0 | 3 A | Solder | Receptacle Female Sockets | 4 | DC C | Mounting Brackets Shielded | Flash |
