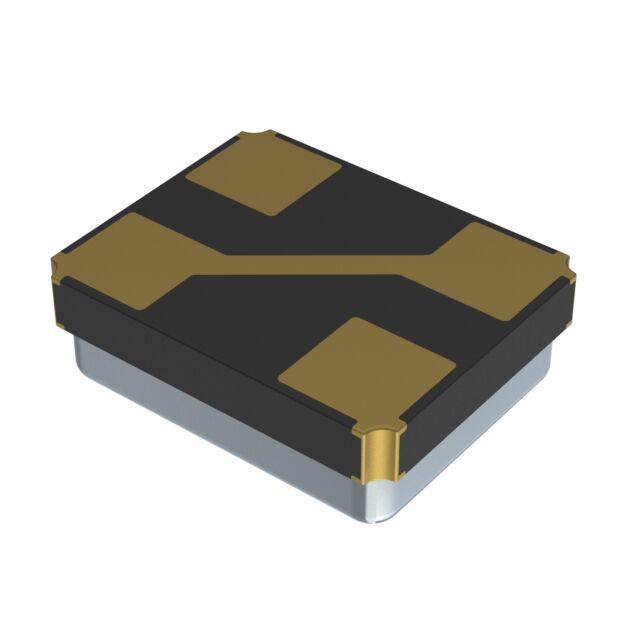

XRCGB Series

Catalog

CRYSTALS 32.768 MHZ 6PF

...

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Operating Mode	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency Tolerance	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Frequency Stability	ESR (Equivalent Series Resistance)	Frequency	Load Capacitance
Murata Electronics XRCGB32M768F2N10R0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	100 ppm	Surface Mount	0.7 mm	0.028 "	50 ppm	100 Ohms	32.768 MHz	6 pF
Murata Electronics XRCGB27M000F3M14R0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	30 ppm	Surface Mount	0.7 mm	0.028 "	40 ppm	150 Ohms	27 MHz	6 pF
Murata Electronics XRCGB38M400F1S1CR0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	10 ppm	60 Ohms	38.4 MHz	10 pF
Murata Electronics XRCGB32M000F1H83R0	85 °C	-40 C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	15 ppm	60 Ohms	32 MHz	9 pF
Murata Electronics XRCGB26M000F1S1AR0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	10 ppm	60 Ohms	26 MHz	6 pF
Murata Electronics XRCGB27M120F3M16R0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	30 ppm	Surface Mount	0.7 mm	0.028 "	40 ppm	60 Ohms	27.12 MHz	6 pF
Murata Electronics XRCGB40M000F1S1CR0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	10 ppm	50 Ohms	40 MHz	10 pF
Murata Electronics XRCGB25M000F2P01R0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	20 ppm	Surface Mount	0.7 mm	0.028 "	20 ppm	150 Ohms	25 MHz	8 pF
Murata Electronics XRCGB40M000F1S1BR0	85 °C	-30 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	10 ppm	50 Ohms	40 MHz	8 pF
Murata Electronics XRCGB25M000F1H00R0	70 °C	-20 ░C	MHz Crystal	Fundamental	4-SMD No Lead	1.6 mm	0.079 in	0.063 "	2 mm	10 ppm	Surface Mount	0.7 mm	0.028 "	10 ppm	80 Ohm	25 MHz	6 pF
