XZFMOK07 Series

Manufacturer: SunLED

Catalog

DISPLAY 7-SEG 0.3" DBL ORG 20SMD

Part	Wavelength - Peak	Power Dissipation (Max) [Max]	Millicandela Rating	Current - Test	Display Type	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Number of Characters	Voltage - Forward (Vf) (Typ)	Common Pin	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Number of Characters

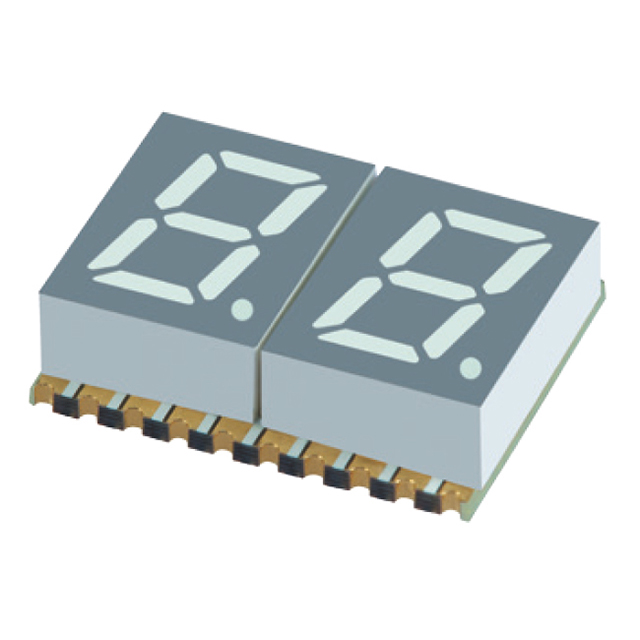

SunLED XZFMOK07A2	610 nm	75 mw	11 mcd	10 mA	7-Segment	20-SMD No Lead	7.62 mm	0.3 in	2	2 V	Common Anode	14.8 mm	0.583 in	0.148 in	0.472 in	3.75 mm	12 mm

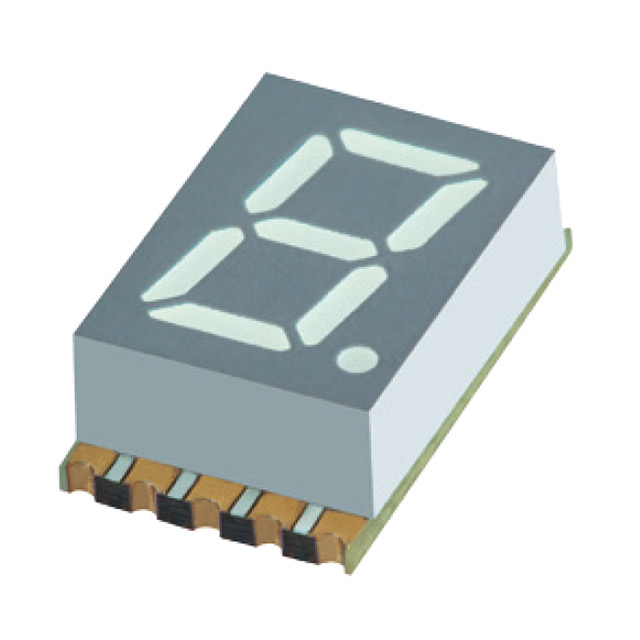

SunLED XZFMOK07A	610 nm	75 mw	11 mcd	10 mA	7-Segment	10-SMD No Lead	7.62 mm	0.3 in		2 V	Common Anode	0.287 in	7.3 mm	3.75 mm	12 mm	0.148 in	0.472 in	1
SunLED XZFMOK07C	610 nm	75 mw	11 mcd	10 mA	7-Segment	10-SMD No Lead	7.62 mm	0.3 in		2 V	Common Cathode	0.287 in	7.3 mm	3.75 mm	12 mm	0.148 in	0.472 in	1

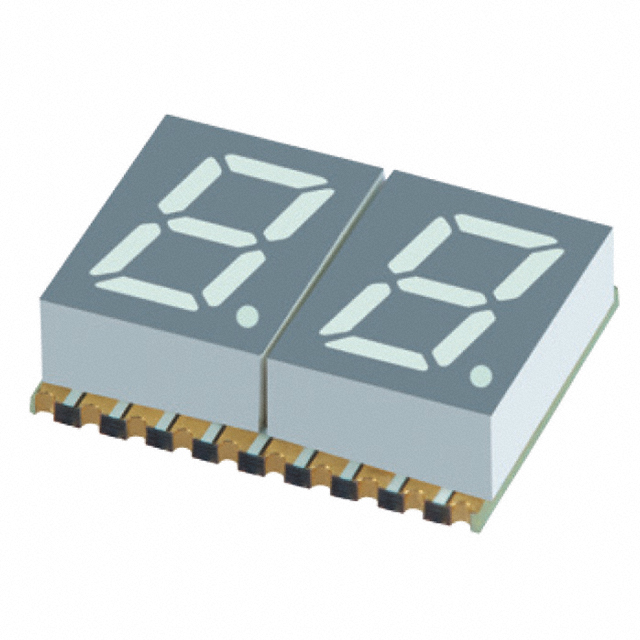

SunLED XZFMOK07C2	610 nm	75 mw	11 mcd	10 mA	7-Segment	20-SMD No Lead	7.62 mm	0.3 in	2	2 V	Common Cathode	14.8 mm	0.583 in	0.148 in	0.472 in	3.75 mm	12 mm
