076450 Series

Manufacturer: Molex

Catalog

CONN HDR IMPACT 96POS EDGE MNT

Part	Number of Positions	Pitch [x]	Pitch [x]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Contact Layout, Typical	Mounting Type	Color	Number of Columns	Contact Finish	Connector Type	Features	Termination	Voltage Rating	Contact Layout, Typical	Connector Style
Molex 0764505607	96	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C	32 Differential Pairs	Board Edge Right Angle Through Hole	Black	16	Gold	Header Male Pins	Board Guide	Press-Fit	30 VDC
Molex 0764501104	60	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C		Board Edge Right Angle Through Hole	Black	10	Gold	Header Male Pins		Press-Fit	30 VDC	20
Molex 0764501607	96	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C	32 Differential Pairs	Board Edge Right Angle Through Hole	Black	16	Gold	Header Male Pins		Press-Fit	30 VDC

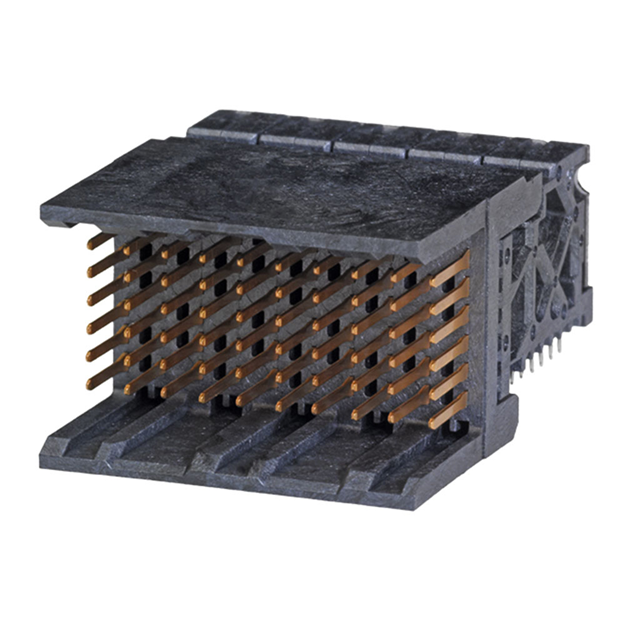

Molex 0764501107	60	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C		Board Edge Right Angle Through Hole	Black	10	Gold	Header Male Pins		Press-Fit	30 VDC	20
Molex 0764505108	60	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C		Board Edge Right Angle Through Hole	Black	10	Gold	Header Male Pins	Board Guide	Press-Fit	30 VDC	20
Molex 0764509607	96	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C	32 Differential Pairs	Board Edge Right Angle Through Hole	Black	16	Gold	Header Male Pins	Board Guide	Press-Fit	30 VDC
Molex 0764507607	96	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C	32 Differential Pairs	Board Edge Right Angle Through Hole	Black	16	Gold	Header Male Pins	Board Guide	Press-Fit	30 VDC		Guide Left Impact
Molex 0764501637	96	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C	32 Differential Pairs	Board Edge Right Angle Through Hole	Black	16	Gold	Header Male Pins		Press-Fit	30 VDC

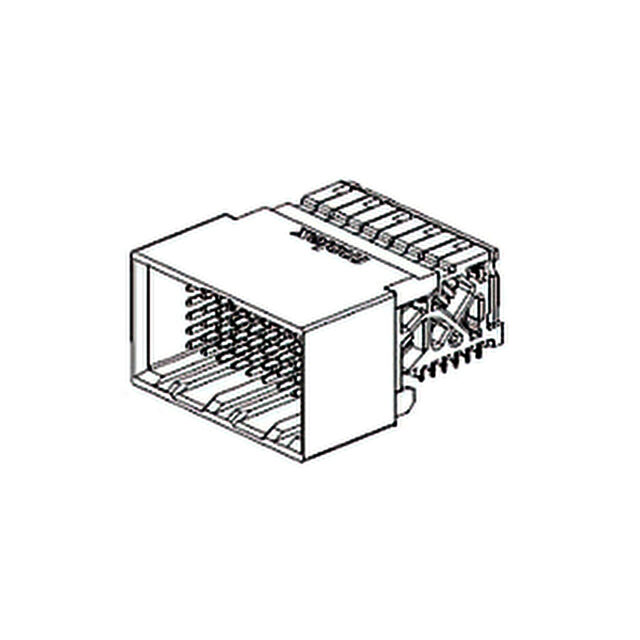

Molex 0764501127	60	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C		Board Edge Right Angle Through Hole	Black	10	Gold	Header Male Pins		Press-Fit	30 VDC	20
Molex 0764501117	60	0.053 in	1.35 mm	UL94 V-0	0.76 Ám	30 Áin	6	All	85 °C	-55 °C		Board Edge Right Angle Through Hole	Black	10	Gold	Header Male Pins		Press-Fit	30 VDC	20
