042410 Series
Manufacturer: Molex
Beta
⌘K

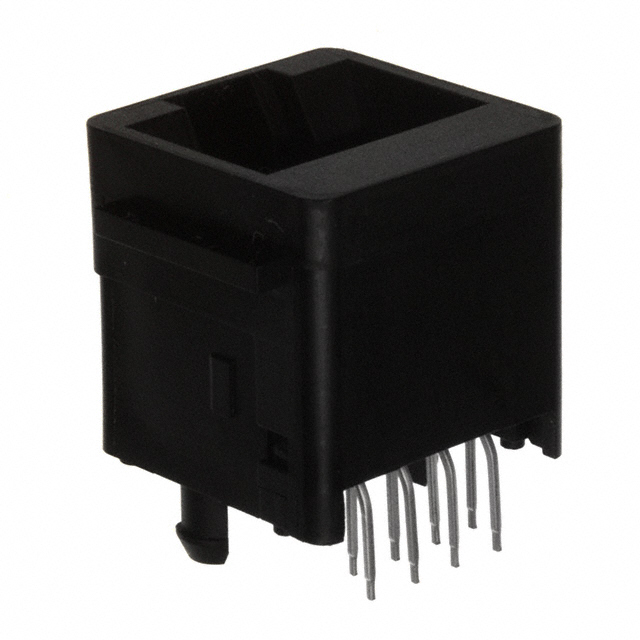

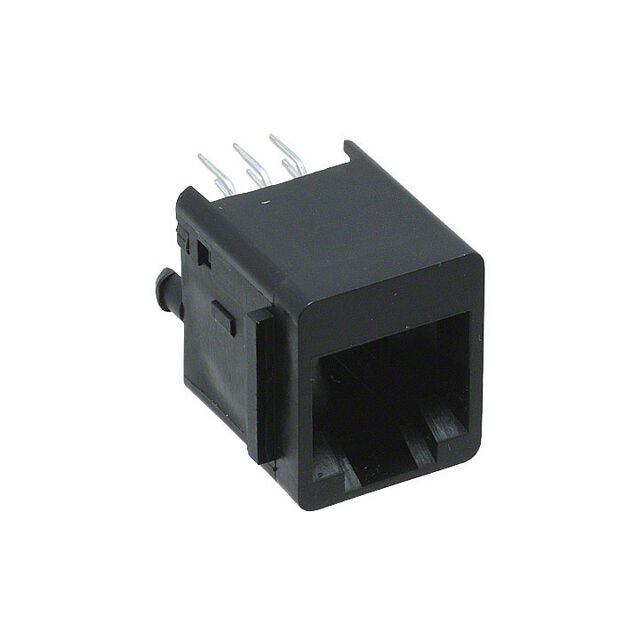

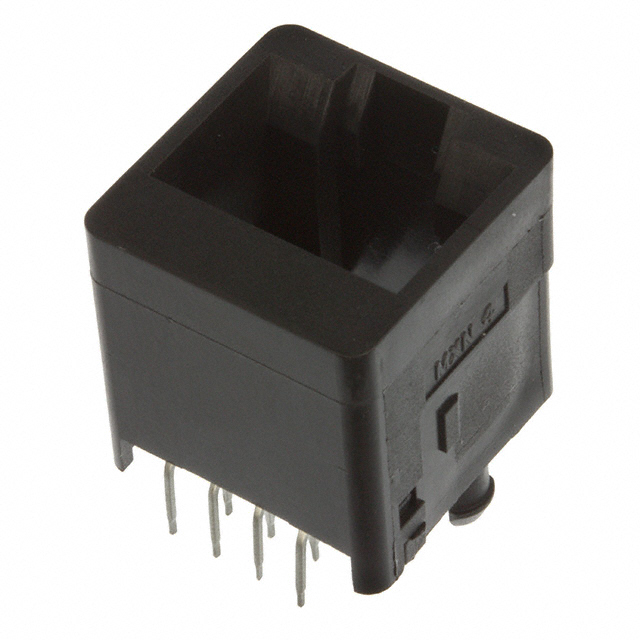

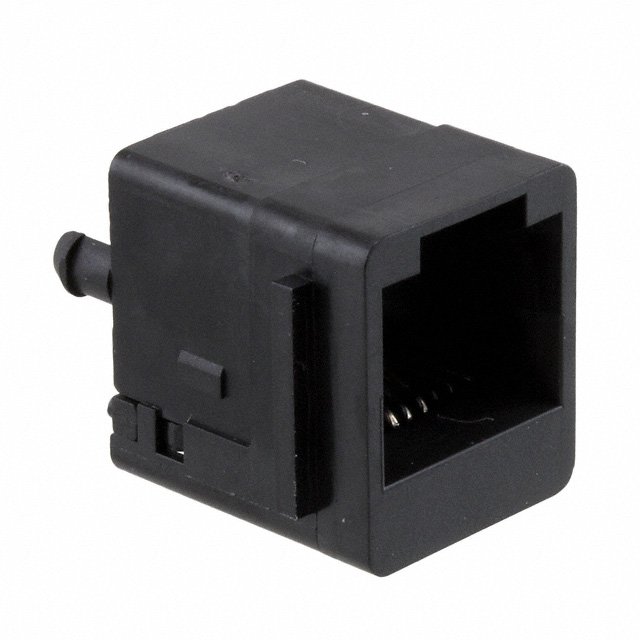

CONN MOD JACK 6P6C VERT UNSHLD
| Part | Shielding | Termination | Orientation | Housing Material | Tab Direction | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Number of Rows | LED Color | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type | Connector Type | Ratings | Number of Positions/Contacts | Number of Positions/Contacts | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 6p6c (RJ11 RJ12 RJ14 RJ25) | ||
Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 2 6 | Board Lock Panel Stops | |
 Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p8c (RJ45 Ethernet) | Board Lock Panel Stops | |
Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p8c (RJ45 Ethernet) | Board Lock Keyed | |
Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p2c | Board Lock Keyed | |
 Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 6p4c | Board Lock Panel Stops | |
Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p2c | Board Lock Panel Stops | |
Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p2c | ||
 Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 8p8c (RJ45 Ethernet) | ||
 Molex | Unshielded | Solder | Vertical | Polyester | User Selectable | Phosphor Bronze | 85 °C | -40 °C | 1 | 1 | Does Not Contain LED | 50 µin | 1.27 µm | Gold | Through Hole | Jack | Cat3 | 6p6c (RJ11 RJ12 RJ14 RJ25) | Board Lock Panel Stops |
