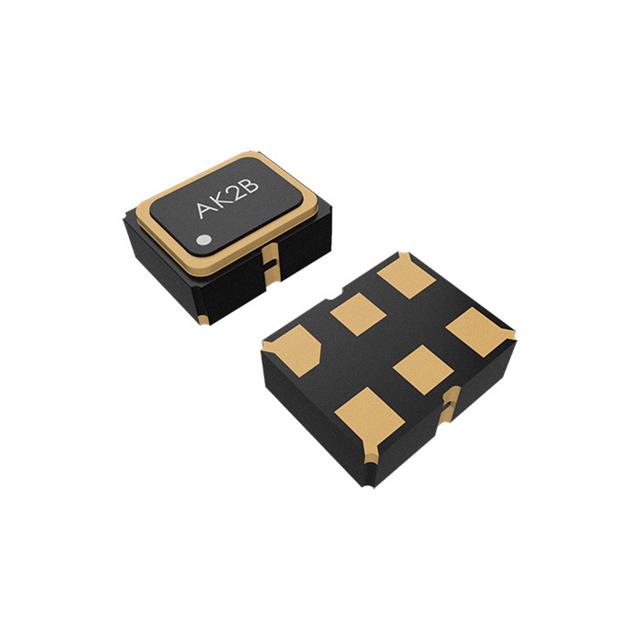

AK2B Series

Catalog

STANDARD CLOCK OSCILLATORS 2520 4-SMD XO 156.25 MHZ 25PPM -40 C - 85 C HCSL 3.3V

Part	Current - Supply (Disable) (Max) [Max]	Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Output	Frequency	Voltage - Supply	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Current - Supply (Max) [Max]	Frequency Stability	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Base Resonator [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Function
Abracon LLC AK2BHAF1-156.2500T	30 µA	XO (Standard)	6-SMD No Lead	85 °C	-40 C	HCSL	156.25 MHz	3.3 V	2.5	6-SMD	2	40 mA	25 ppm	Surface Mount	2.5 mm	0.079 in	0.098 in	2 mm	Crystal	0.043 "	1.1 mm	Standby (Power Down)
