323912 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

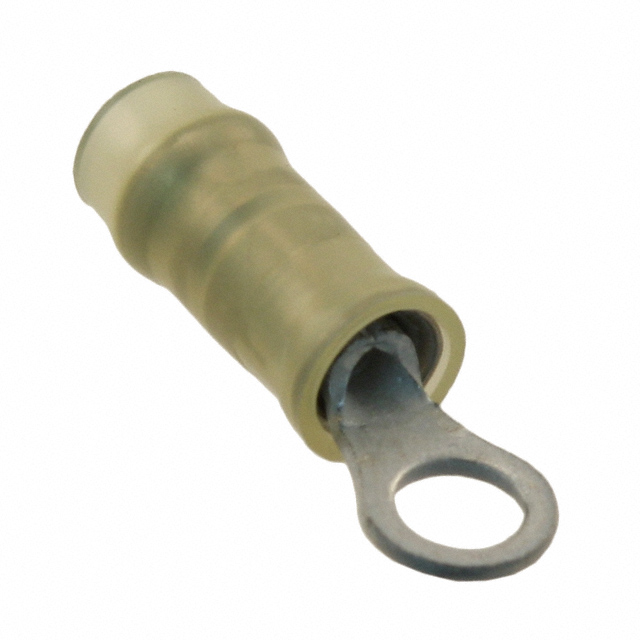

CONN RING CIRC 22-26AWG #2 CRIMP
| Part | Wire Gauge [Min] | Wire Gauge [Max] | Length - Overall | Length - Overall [x] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Contact Finish | Thickness [custom] | Thickness [custom] | Features | Contact Material | Mounting Type | Material - Insulation | Stud/Tab Size | Color | Termination | Insulation | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 22 AWG | 26 AWG | 13.34 mm | 0.525 in | 0.082 " | 2.08 mm | 0.05 in | 1.27 mm | Tin | 0.46 mm | 0.018 in | Serrated Termination | Copper | Free Hanging (In-Line) | Nylon Polyamide (PA) | 2 Stud | Yellow | Crimp | Insulated | Circular | 3.56 mm | 0.14 in |
