LNJ757 Series

Catalog

LED RGB CHIP 628NM 525 470NM SMD

Part	Package / Case	Millicandela Rating	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Lens Size [y]	Lens Size [x]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Mounting Type	Configuration	Supplier Device Package	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Height (Max) [Max]	Color

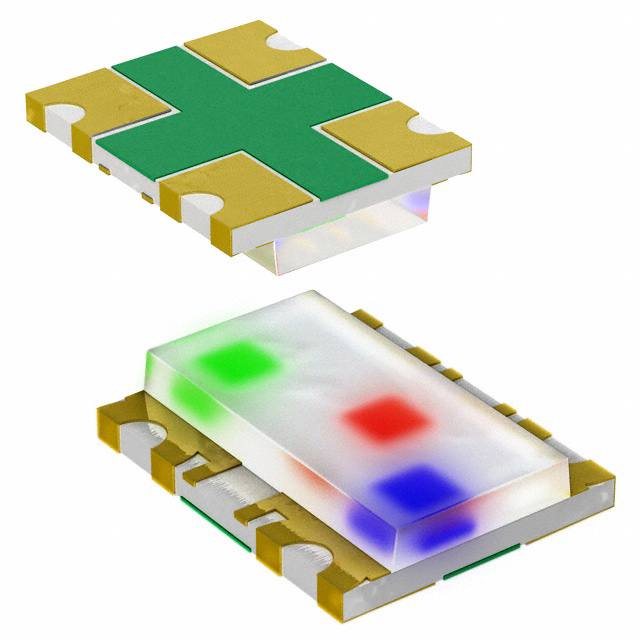

Panasonic Industrial Automation Sales LNJ757W86RA	4-SMD No Lead	15 mcd 30 mcd 90 mcd	628 nm	525 nm	470 nm	Rectangle with Flat Top	1.3 mm	1.05 mm	1.9 V	2.95 V	3 V	0.7 mm	1.3 mm	643 nm	462 nm	520 nm	Surface Mount	Common Anode	ESS Type LED	5 mA	5 mA	5 mA	0.35 mm	Blue Green Red
