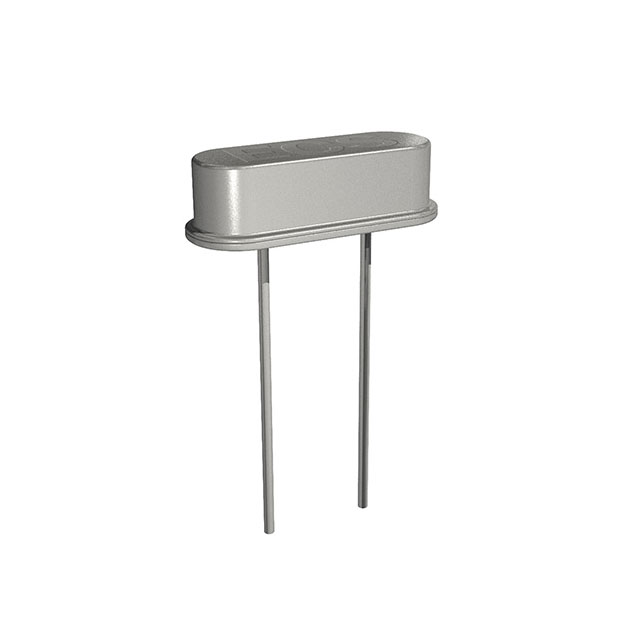

HC-49USX Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS CRYSTAL 16.0000MHZ 20PF TH
| Part | Frequency Tolerance | Frequency | Frequency Stability | ESR (Equivalent Series Resistance) | Package / Case | Type | Operating Temperature [Max] | Operating Temperature [Min] | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Load Capacitance | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 30 ppm | 16 MHz | 50 ppm | 40 Ohms | HC-49/US | MHz Crystal | 70 °C | -10 °C | Fundamental | 0.138 " | 3.5 mm | 20 pF | Through Hole | ||||
 ECS Inc. | 10 ppm | 8 MHz | 10 ppm | 80 Ohm | HC-49/US | MHz Crystal | 70 °C | -20 ░C | Fundamental | 0.138 " | 3.5 mm | 18 pF | Through Hole | 0.183 " | 11.35 mm | 0.447 " | 4.65 mm |
