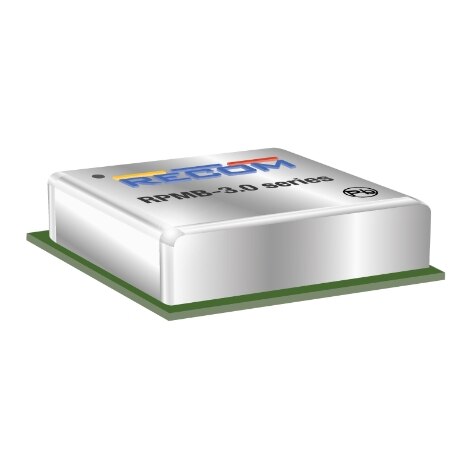

RPMB-3.0 Series

Non-Isolated DC/DC Converters 4-36Vi 3.3Vo 3A 1-9VTrim Reg

Manufacturer: Recom Power

Catalog

Non-Isolated DC/DC Converters 4-36Vi 3.3Vo 3A 1-9VTrim Reg

Catalog

Non-Isolated DC/DC Converters 4-36Vi 3.3Vo 3A 1-9VTrim Reg

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Efficiency	Number of Outputs	Applications	Type	Control Features	Features	Mounting Type	Current - Output (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Voltage - Output 1

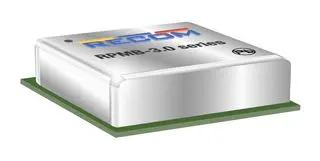

Recom Power RPMB12-3.0	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	93 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	12.8 V	12 V
Recom Power RPMB5.0-3.0	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	88 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	5.5 V	5 V
Recom Power RPMB3.3-3.0-CT	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	84 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	4 V	3.3 V
Recom Power RPMB15-3.0-CT	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	94 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	16 V	15 V
Recom Power RPMB3.3-3.0	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	84 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	4 V	3.3 V
Recom Power RPMB12-3.0-CT	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	93 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	12.8 V	12 V
Recom Power RPMB15-3.0	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	94 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	16 V	15 V
Recom Power RPMB5.0-3.0-CT	36 V	-40 °C	100 °C	3.8 mm	0.48 in	0.15 in	12.2 mm	0.48 in	12.2 mm	88 %	1	ITE (Commercial)	Non-Isolated PoL Module	Active Floating Enable	Adjustable Output Remote On/Off Remote Sense	Surface Mount	3 A	25-BLGA Module	5.5 V	5 V
