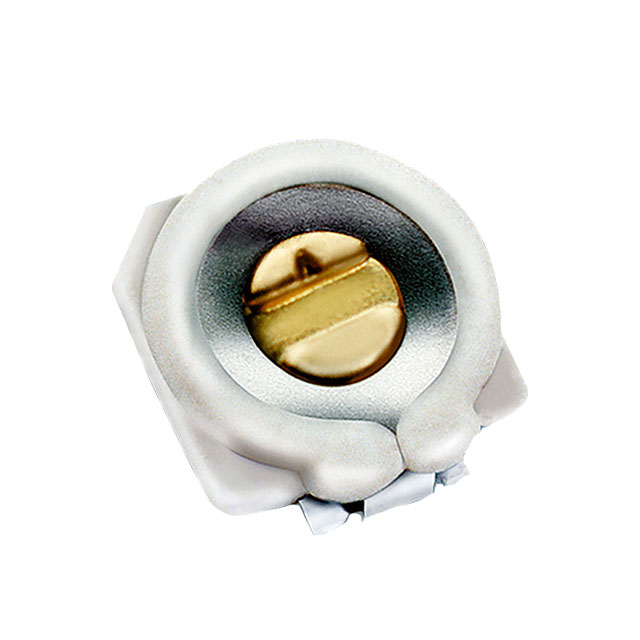

JR Series

Catalog

TRIMMER / VARIABLE CAPACITORS 4.5 - 20PF 100VOLTS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Features	Mounting Type	Adjustment Type	Q @ Freq	Capacitance Range [Max]	Capacitance Range [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material
Knowles Syfer JR200	85 °C	-40 C	0.045 in	1.15 mm	125 V	General Purpose	Surface Mount	Top	1 MHz 500	20 pF	4.5 pF	0.122 in	3.1 mm	3.5 mm	0.138 in	Ceramic
Knowles Syfer JR300	85 °C	-40 C	0.045 in	1.15 mm	125 V	General Purpose	Surface Mount	Top	1 MHz 200	30 pF	5.5 pF	0.122 in	3.1 mm	3.5 mm	0.138 in	Ceramic
