AX01F060 Series
Manufacturer: JAE Electronics
Beta
⌘K
FLOATING SIDE B2B CONNECTOR, 60
| Part | Mounting Type | Contact Finish | Features | Pitch | Pitch | Connector Type | Number of Rows [custom] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Mated Stacking Heights | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

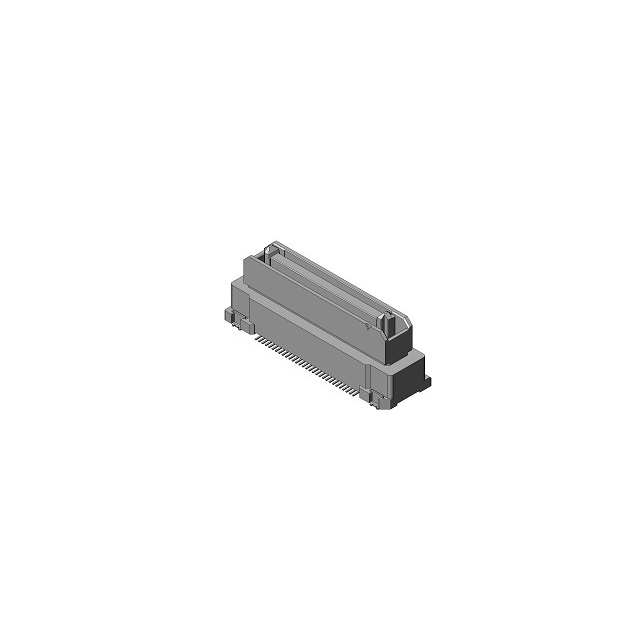

 JAE Electronics | Surface Mount | Gold | Board Guide Solder Retention | 0.64 mm | 0.025 in | Receptacle Center Strip Contacts | 2 | 60 | 0.1 Ám | 4 Áin | |||

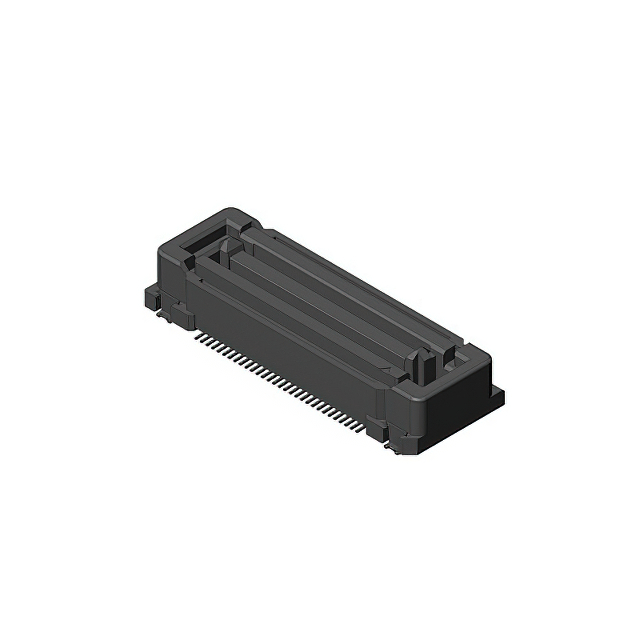

 JAE Electronics | Surface Mount | Gold | Board Guide Solder Retention | 0.64 mm | 0.025 in | Receptacle Center Strip Contacts | 2 | 60 | 0.1 Ám | 4 Áin | 8 mm 10 mm 18 mm | 0.248 in | 6.3 mm |
