10EV010.ZXBDP Series

Fuse - 10EV LC 500 VDC 10A, BD TABS PAD

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Fuse - 10EV LC 500 VDC 10A, BD TABS PAD

Part	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	Package / Case	Mounting Type	Fuse Type	DC Cold Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Melting I˛t	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Applications
Littelfuse/Commercial Vehicle Products 10EV010.ZXBDP	500 V	20 kA	10 A	Blade Terminal (Bolt) Cylindrical	Bolt Mount	Cartridge	0.0128 Ohms	125 °C	-40 °C	310	1.532 "	0.406 in	38.9 mm	10.3 mm	Electrical Industrial

Catalog

Fuse - 10EV LC 500 VDC 10A, BD TABS PAD

Key Features

• Rated as 10 A

• Interrupting rating of 20 kA at 500 V ac and 500 V dc

• Operate at temperatures between –40 °C and 125 °C

• Tin-plated copper alloy terminals

• Nickel-plated brass end caps

• Melamine bodies with UL 94 flammability ratings of V-0

• Refer to ISO 8820-8 and JASO D622 standards

Description

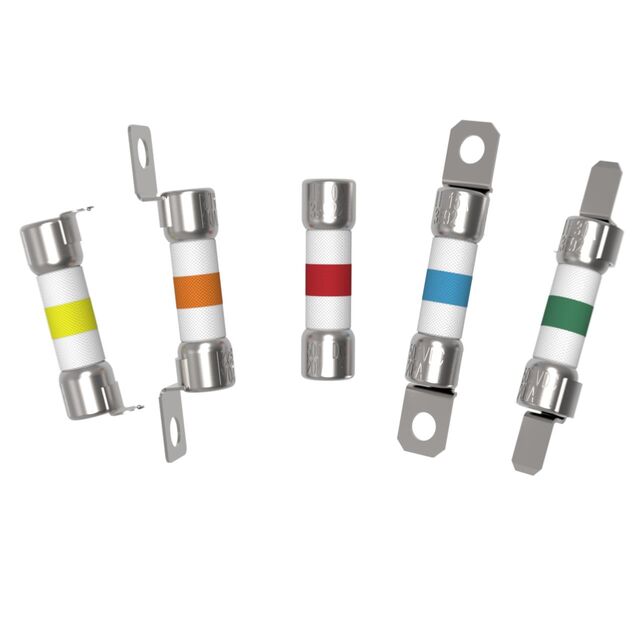

10EV fuses come in six configurations. Each version of the cylindrical high-current fuse employs diffusion pill technology to provide time-delayed protection to circuits in EVs and hybrid passenger vehicles. Ask Littelfuse which configuration best meets your needs.
