2002-1-2 Series
Manufacturer: CNC Tech
Beta
⌘K

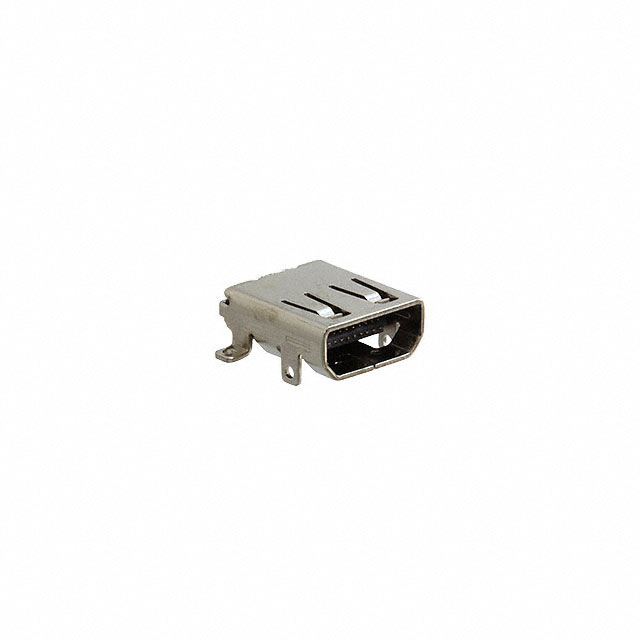

CONN RCP MICRO HDMI 19POS SMD RA
| Part | Insulation Color | Material Flammability Rating | Contact Finish | Shell/Shielding Material | Features | Connector Type | Gender | Mounting Type | Current Rating (Amps) | Mounting Feature | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Number of Contacts | Termination | Voltage - Rated | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Black | UL94 V-0 | Gold | Copper Alloy | Solder Retention | HDMI - Micro | Receptacle | Right Angle Surface Mount | 0.3 A | Horizontal | 5000 | 85 °C | -20 ░C | 19 | Solder | 40 V | 1 |
 CNC Tech | Black | UL94 V-0 | Gold | Copper Alloy | HDMI - Micro | Receptacle | Surface Mount Right Angle Through Hole | 0.3 A | Horizontal | 5000 | 85 °C | -20 ░C | 19 | Solder | 40 V | 1 | |
 CNC Tech | Black | UL94 V-0 | Gold | Copper Alloy | HDMI - Micro | Receptacle | Surface Mount Right Angle Through Hole | 0.3 A | Horizontal | 5000 | 85 °C | -20 ░C | 19 | Solder | 40 V | 1 |
