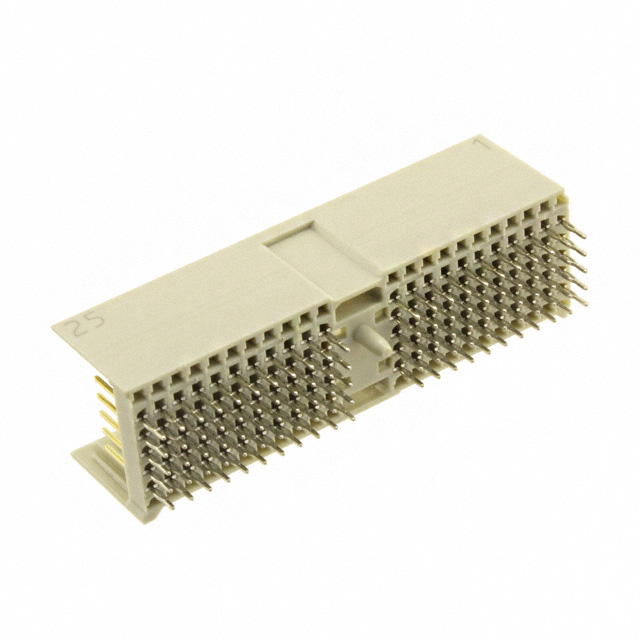

har-bus HM Series
Manufacturer: HARTING
Beta
⌘K
HARD METRIC CONNECTORS 95P FEMALE R/A
| Part | Connector Style | Number of Positions Loaded | Mounting Type | Number of Rows | Connector Type | Termination | Connector Usage | Pitch [x] | Pitch [x] | Contact Finish | Number of Positions | Current Rating (Amps) | Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | B 19 | All | Right Angle Through Hole | 5 | Receptacle Female Sockets | Press-Fit | CompactPCI J3 VME PO | 0.079 in | 2 mm | Gold | 95 | ||||
 HARTING | A 22 | All | Through Hole | 5 | Header Male Pins | Press-Fit | Backplane | 0.079 in | 2 mm | Gold Gold-Palladium | 110 | 1 A | Board Guide | -55 C | 125 °C |
