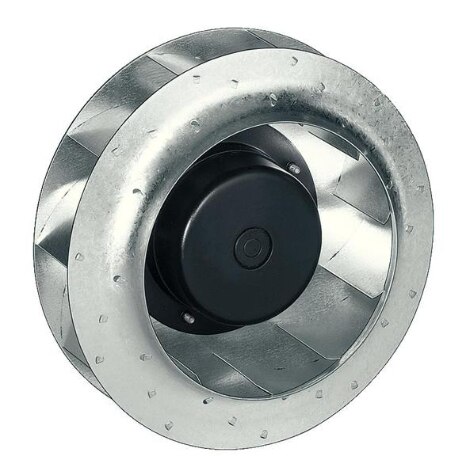

R3G250 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN IMP MTRZD 250X99MM 230VAC
| Part | Material - Frame | Material - Blade | Ingress Protection | Voltage - Rated | Bearing Type | RPM | Fan Type | Noise | Air Flow | Air Flow | Termination | Width [y] | Power (Watts) | Approval Agency | Size / Dimension | Size / Dimension [diameter] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Material - Blade [custom] | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Air Flow | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | IP54 - Dust Protected Water Resistant | 230 VAC | Ball | 2510 RPM | Motorized Impellers | 76 dB(A) | 23.58 m³/min | 842.2 CFM | 2 Wire Leads | 99 mm | 170 W | CSA UL VDE | Round | 255 mm | Electronic Commutation (EC) | -25 °C | 60 °C | ||||||||
 ebm-papst Inc. | Aluminum | IP54 - Dust Protected Water Resistant | 230 VAC | Ball | 3450 RPM | Motorized Impellers | 28.94 m³/min | 1033.7 CFM | Terminal Block | 223.9 mm | 750 W | CCC CE EAC | Round | 284 mm | Alarm PWM Control Thermal Overload Protector (TOP) | -25 °C | 40 °C | Aluminum | 3.3 A | 277 VAC | 200 VAC | -25 °C | 40 °C | ||||
ebm-papst Inc. | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | IP54 - Dust Protected Water Resistant | 230 VAC | Ball | 2510 RPM | Motorized Impellers | 76 dB(A) | 23.24 m³/min | 2 Wire Leads | 99 mm | 170 W | UL | Round | 255 mm | Electronic Commutation (EC) PWM Control Speed Sensor (Tach) | -40 C | 80 °C | 1.4 A | 829.9 CFM | |||||||
 ebm-papst Inc. | IP42 | 48 VDC | Ball | 2645 RPM | Motorized Impellers | 26.04 m³/min | 930 CFM | 4 Wire Leads | 135 W | CCC CE CSA EAC UL | Round | 255 mm | PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP) | -25 °C | 60 °C | 106.5 mm |
