RP111 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K

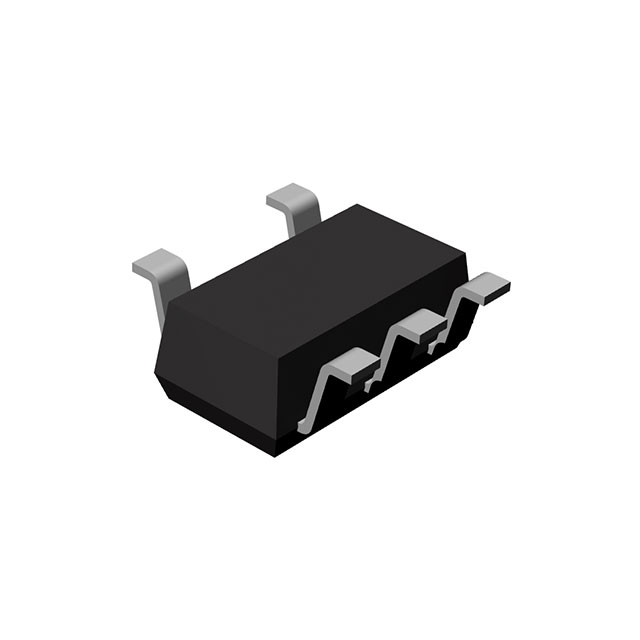

LDO REGULATOR POS 1V 0.5A 5-PIN SOT-23 T/R
| Part | Number of Regulators | Voltage - Input (Max) [Max] | Control Features | Voltage Dropout (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Min/Fixed) | Current - Output | Current - Quiescent (Iq) | Output Configuration | Mounting Type | Supplier Device Package | Protection Features | PSRR | Package / Case | Voltage Dropout (Max) | Grade | Qualification | PSRR [Min] | PSRR [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 0.64 V | 85 °C | -40 C | 1 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-23-5 | Over Current Over Temperature | 75 dB | SC-74A SOT-753 | |||||
 Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 1.5 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-89-5 | Over Current Over Temperature | 75 dB | SOT-89-5/6 | 0.48 V | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 0.64 V | 85 C | -40 ¯C | 1.1 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-89-5 | Over Current Over Temperature | 75 dB | SOT-89-5/6 | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 1.8 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-23-5 | Over Current Over Temperature | 75 dB | SC-74A SOT-753 | 0.41 V | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 3.1 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-23-5 | Over Current Over Temperature | 75 dB | SC-74A SOT-753 | 0.32 V | |||||
 Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 C | -40 ¯C | 3.3 V | 500 mA | 125 µA | Positive | Surface Mount | DFN1212-6 | Over Current Over Temperature | 75 dB | 6-XFDFN Exposed Pad | 0.32 V | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 3 V | 500 mA | 125 µA | Positive | Surface Mount | DFN1212-6 | Over Current Over Temperature | 75 dB | 6-XFDFN Exposed Pad | 0.32 V | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 1.8 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-89-5 | Over Current Over Temperature | 75 dB | SOT-89-5/6 | 0.41 V | |||||
Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 85 °C | -40 C | 1.25 V | 500 mA | 125 µA | Positive | Surface Mount | DFN1212-6 | Over Current Over Temperature | 75 dB | 6-XFDFN Exposed Pad | 0.53 V | |||||
 Nisshinbo Micro Devices Inc. | 1 | 5.25 V | Enable | 0.64 V | 105 °C | -40 °C | 1 V | 500 mA | 125 µA | Positive | Surface Mount | SOT-23-5 | Over Current Over Temperature | SC-74A SOT-753 | Automotive | AEC-Q100 | 70 dB | 75 dB |
