EEU-FS Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 2700UF 20% 35V RADIAL

...

Part	Polarization	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Voltage - Rated	Ripple Current @ High Frequency	Applications	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

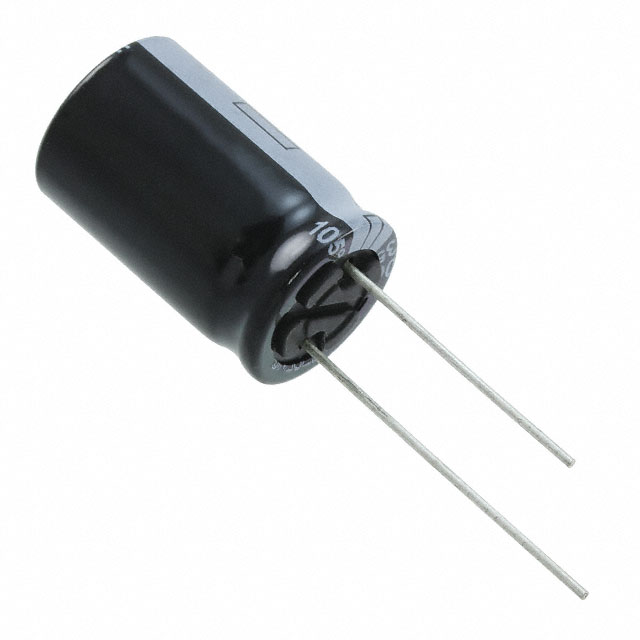

Panasonic Industrial Automation Sales EEU-FS1V272B	Polar	10000 Hrs	0.63 in	16 mm	1.063 in	27 mm	20 %	7.5 mm	0.295 in	3.056 A	35 V	3.82 A	General Purpose	Through Hole	2700 µF	-40 °C	105 ░C	Radial Can	14 mOhms

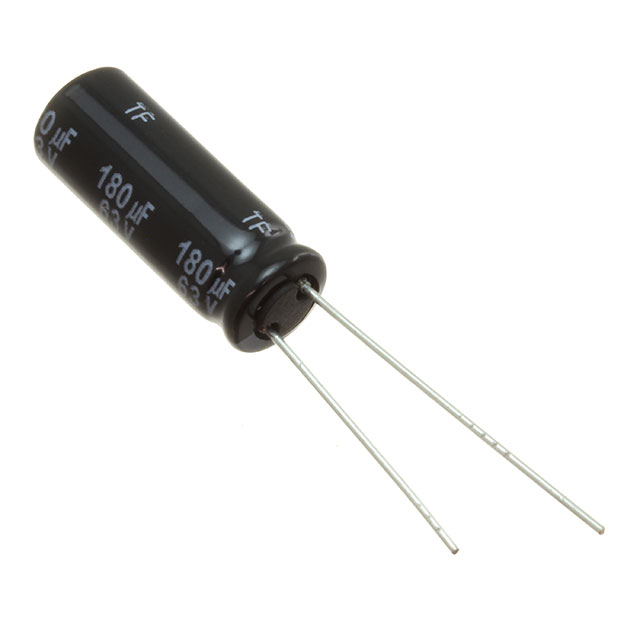

Panasonic Industrial Automation Sales EEU-FS1J181LB	Polar	9000 Hrs	0.315 "	8 mm			20 %	5 mm	0.197 in	651 mA	63 V	930 mA	General Purpose	Through Hole	180 çF	-40 °C	105 ░C	Radial Can	50 mOhms	0.807 "	20.5 mm

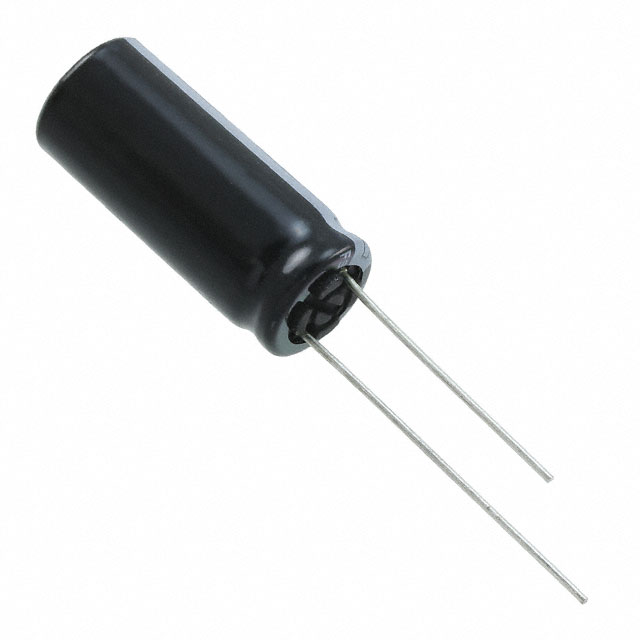

Panasonic Industrial Automation Sales EEU-FS1K271LB	Polar	10000 Hrs	0.394 in	10 mm	1.063 in	27 mm	20 %	5 mm	0.197 in	840 mA	80 V	1.2 A	General Purpose	Through Hole	270 µF	-40 °C	105 ░C	Radial Can	44 mOhms
Panasonic Industrial Automation Sales EEU-FS1J181B	Polar	8000 Hrs	0.394 in	10 mm	16.51 mm	16.5 mm	20 %	5 mm	0.197 in	751.1 mA	63 V	1.073 A	General Purpose	Through Hole	180 çF	-40 °C	105 ░C	Radial Can	45 mOhms
Panasonic Industrial Automation Sales EEU-FS1E122B	Polar	10000 Hrs	0.394 in	10 mm	0.866 in	22 mm	20 %	5 mm	0.197 in	1.744 A	25 VDC	2.18 A	General Purpose	Through Hole	1.2 mF	-40 °C	105 ░C	Radial Can	20 mOhms

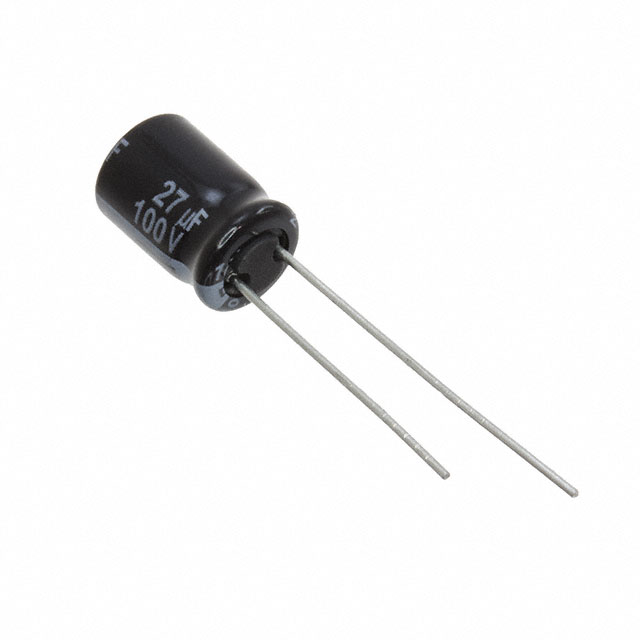

Panasonic Industrial Automation Sales EEU-FS2A270	Polar	6000 Hrs	0.315 "	8 mm	0.512 "	13 mm	20 %	3.5 mm	0.138 in	269.5 mA	100 V	490 mA	General Purpose	Through Hole	27 µF	-40 °C	105 ░C	Radial Can	160 mOhms
Panasonic Industrial Automation Sales EEU-FS1K470	Polar	6000 Hrs	0.315 "	8 mm	0.512 "	13 mm	20 %	3.5 mm	0.138 in	343 mA	80 V	490 mA	General Purpose	Through Hole	47 µF	-40 °C	105 ░C	Radial Can	160 mOhms
Panasonic Industrial Automation Sales EEU-FS2A121B	Polar	10000 Hrs	0.394 in	10 mm	0.866 in	22 mm	20 %	5 mm	0.197 in	784 mA	100 V	1.12 A	General Purpose	Through Hole	120 µF	-40 °C	105 ░C	Radial Can	54 mOhms
Panasonic Industrial Automation Sales EEU-FS1J561	Polar	10000 Hrs	0.492 in	12.5 mm			20 %	5 mm	0.197 in	1.49625 A	63 V	1.995 A	General Purpose	Through Hole	560 µF	-40 °C	105 ░C	Radial Can	27 mOhms	1.004 in	25.5 mm
Panasonic Industrial Automation Sales EEU-FS1C362L	Polar	10000 Hrs	0.492 in	12.5 mm			20 %	5 mm	0.197 in	2.904 A	16 V	3.63 A	General Purpose	Through Hole	3600 µF	-40 °C	105 ░C	Radial Can	13 mOhms
