T41450 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
STANDARD CIRCULAR CONNECTORS, WIRE-TO-PANEL, 8 POSITION, SEALABLE, WIRE AND CABLE, SIGNAL, PANEL MOUNT, REVERSE GENDER, NICKEL, M12 CONNECTOR M12 CONNECTOR
| Part | Insert Material [custom] | Insert Material [custom] | Contact Material | Applications | Contact Finish Thickness - Mating | Orientation | Fastening Type | Current Rating (Amps) | Mounting Type | Shell Material | Shell Size - Insert | Mounting Feature | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Primary Material | Shielding | Contact Finish - Mating | Features | Termination | Color | Ingress Protection | Number of Positions | Insert Material | Shell Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

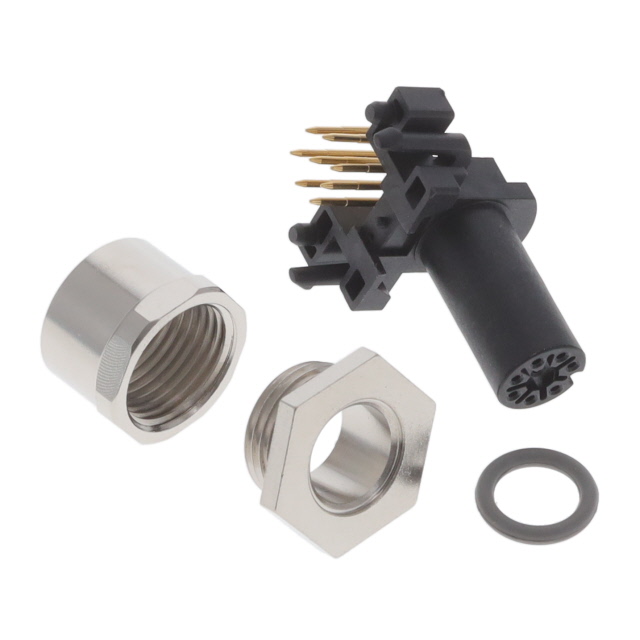

 TE Connectivity AMP Connectors | Nylon | Polyamide (PA) | Copper Alloy | Industrial | Flash | A | Threaded | 2 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-8 | Bulkhead - Front Side Nut | 30 VDC | 85 °C | -40 C | Receptacle Female Sockets | Metal | Unshielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 8 | ||

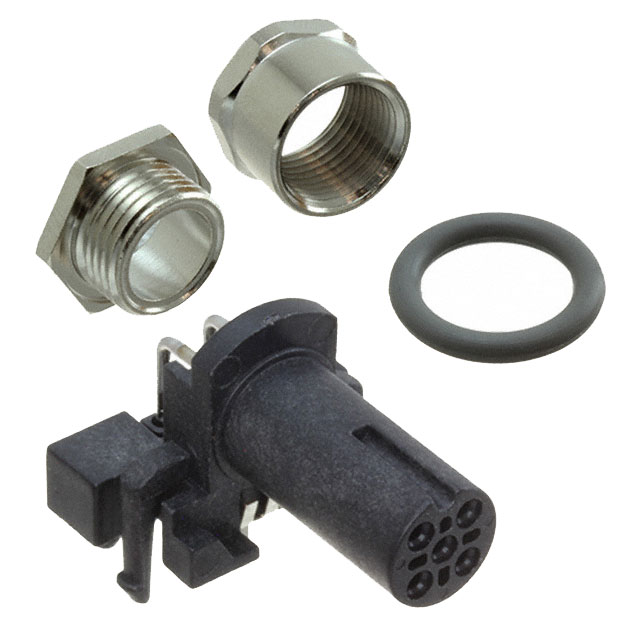

 TE Connectivity AMP Connectors | Copper Alloy | Industrial | Flash | A | Threaded | 4 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-5 | Bulkhead - Rear Side Nut | 60 VDC | 85 °C | -40 C | Plug Female Sockets | Metal | Unshielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 5 | Nylon 6/6 Polyamide (PA66) | Nickel | ||
 TE Connectivity AMP Connectors | Copper Alloy | Industrial | Flash | A | Threaded | 4 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-5 | Bulkhead - Rear Side Nut | 60 VDC | 85 °C | -40 C | Plug Female Sockets | Metal | Shielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 5 | Nylon 6/6 Polyamide (PA66) | Nickel | ||
 TE Connectivity AMP Connectors | Copper Alloy | Industrial | Flash | A | Threaded | 4 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-4 | Bulkhead - Rear Side Nut | 250 V | 85 °C | -40 C | Plug Female Sockets | Metal | Shielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 4 | Nylon 6/6 Polyamide (PA66) | Nickel | ||
 TE Connectivity AMP Connectors | Nylon | Polyamide (PA) | Copper Alloy | Industrial | Flash | A | Threaded | 2 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-8 | Bulkhead - Front Side Nut | 30 VDC | 85 °C | -40 C | Receptacle Female Sockets | Metal | Shielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 8 | ||
 TE Connectivity AMP Connectors | Copper Alloy | Industrial | Flash | A | Threaded | 4 A | Panel Mount Right Angle Through Hole | Copper Alloy | M12-2 | Bulkhead - Rear Side Nut | 250 V | 85 °C | -40 C | Plug Female Sockets | Metal | Unshielded | Gold | Board Guide Board Lock | Solder | Silver | IP67 - Dust Tight Waterproof | 2 | Nylon 6/6 Polyamide (PA66) | Nickel |
