399-40 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER R/A 24POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Height	Insulation Height	Insulation Color	Shrouding	Pitch - Mating	Pitch - Mating	Number of Positions	Number of Positions Loaded	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Connector Type	Fastening Type	Contact Shape	Number of Rows	Mounting Type	Termination	Contact Finish - Post
Mill-Max Manufacturing Corp. 399-40-124-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	24	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin

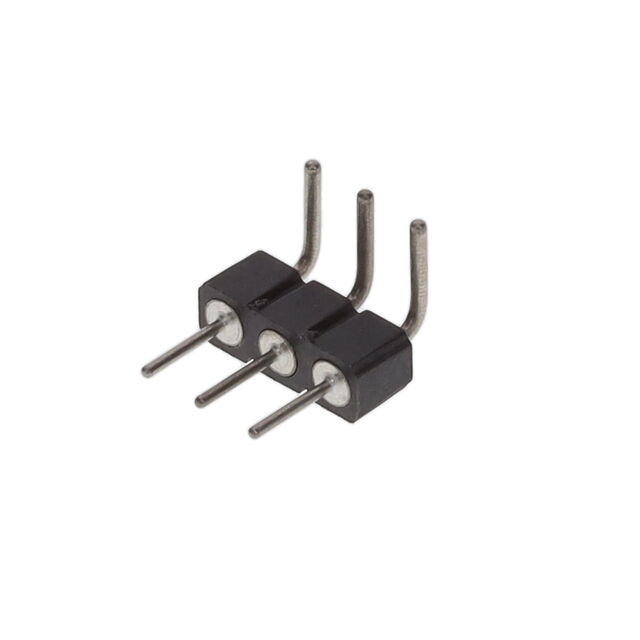

Mill-Max Manufacturing Corp. 399-40-103-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm		All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-110-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	10	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-157-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	57	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-152-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	52	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-132-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm		All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-136-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	36	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-148-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	48	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin

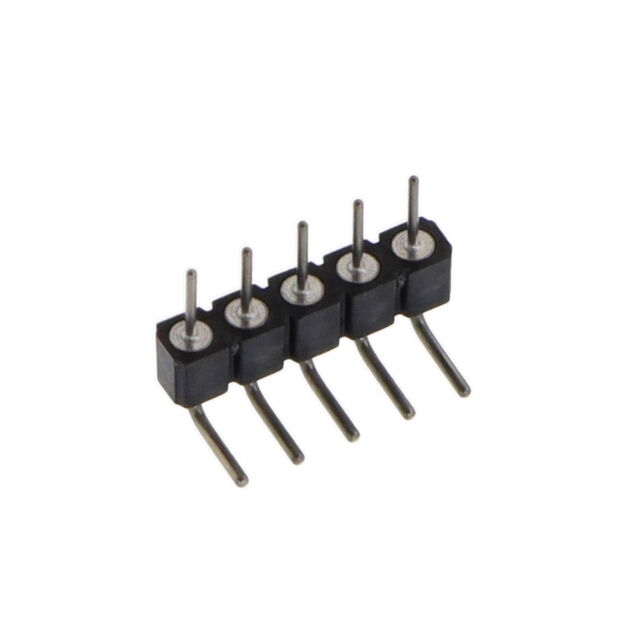

Mill-Max Manufacturing Corp. 399-40-105-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	5	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
Mill-Max Manufacturing Corp. 399-40-161-10-009000	200 µin	5.08 µm	4 mm	0.157 in	0.126 "	3.2 mm	Male Pin	0.1 in	2.54 mm	Black	Unshrouded	0.1 "	2.54 mm	61	All	Polycyclohexylenedimethylene Terephthalate (PCT)	5.08 µm	200 µin	Brass Alloy	Header	Push-Pull	Circular	1	Right Angle Through Hole	Solder	Tin
