UCC28880 Series
Manufacturer: Texas Instruments
Beta
⌘K
HIGH VOLTAGE SWITCHER FOR NON-ISOLATED AC/DC CONVERSION
| Part | Fault Protection | Package / Case | Package / Case | Frequency - Switching | Supplier Device Package | Internal Switch(s) | Voltage - Start Up | Topology | Output Isolation | Duty Cycle | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Breakdown | Supplied Contents | Outputs and Type | Outputs and Type | Power - Output | Board Type | Contents | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Current - Output | Utilized IC / Part | Main Purpose |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Current Limiting Over Load Over Temperature Short Circuit | 0.154 in 3.9 mm 7 Leads | 8-SOIC | 62 kHz | 7-SOIC | 3.9 V | Buck Buck-Boost Flyback | Non-Isolated | 55 % | 3.6 V | 5 V | Surface Mount | -40 °C | 105 °C | 700 V | |||||||||||||

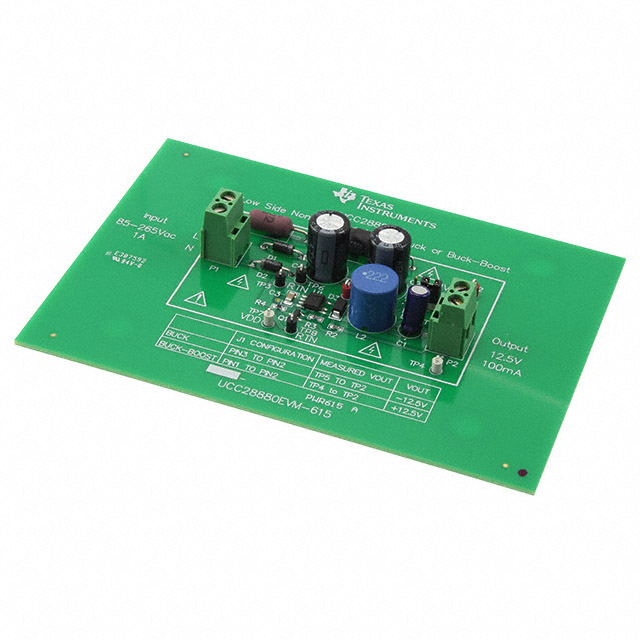

 Texas Instruments | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | 1.25 W | Fully Populated | Board(s) | 265 VAC | 85 VAC | -12.5 V 12.5 V | 100 mA | UCC28880 | AC/DC Non-Isolated | ||||||||||||||||
 Texas Instruments | Current Limiting Over Load Over Temperature Short Circuit | 0.154 in 3.9 mm 7 Leads | 8-SOIC | 62 kHz | 7-SOIC | 3.9 V | Buck Buck-Boost Flyback | Non-Isolated | 55 % | 3.6 V | 5 V | Surface Mount | -40 °C | 105 °C | 700 V | |||||||||||||

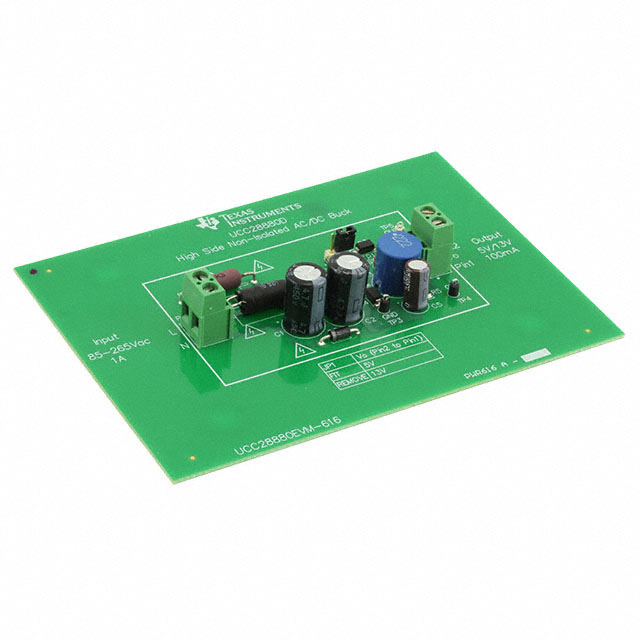

 Texas Instruments | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | 1.3 W | Fully Populated | Board(s) | 265 VAC | 85 VAC | 5 V 13 V | 100 mA | UCC28880 | AC/DC Non-Isolated |
